Shimming (counter rotation model)
0
1
2
3
4
5
6
7
8
9
10
A

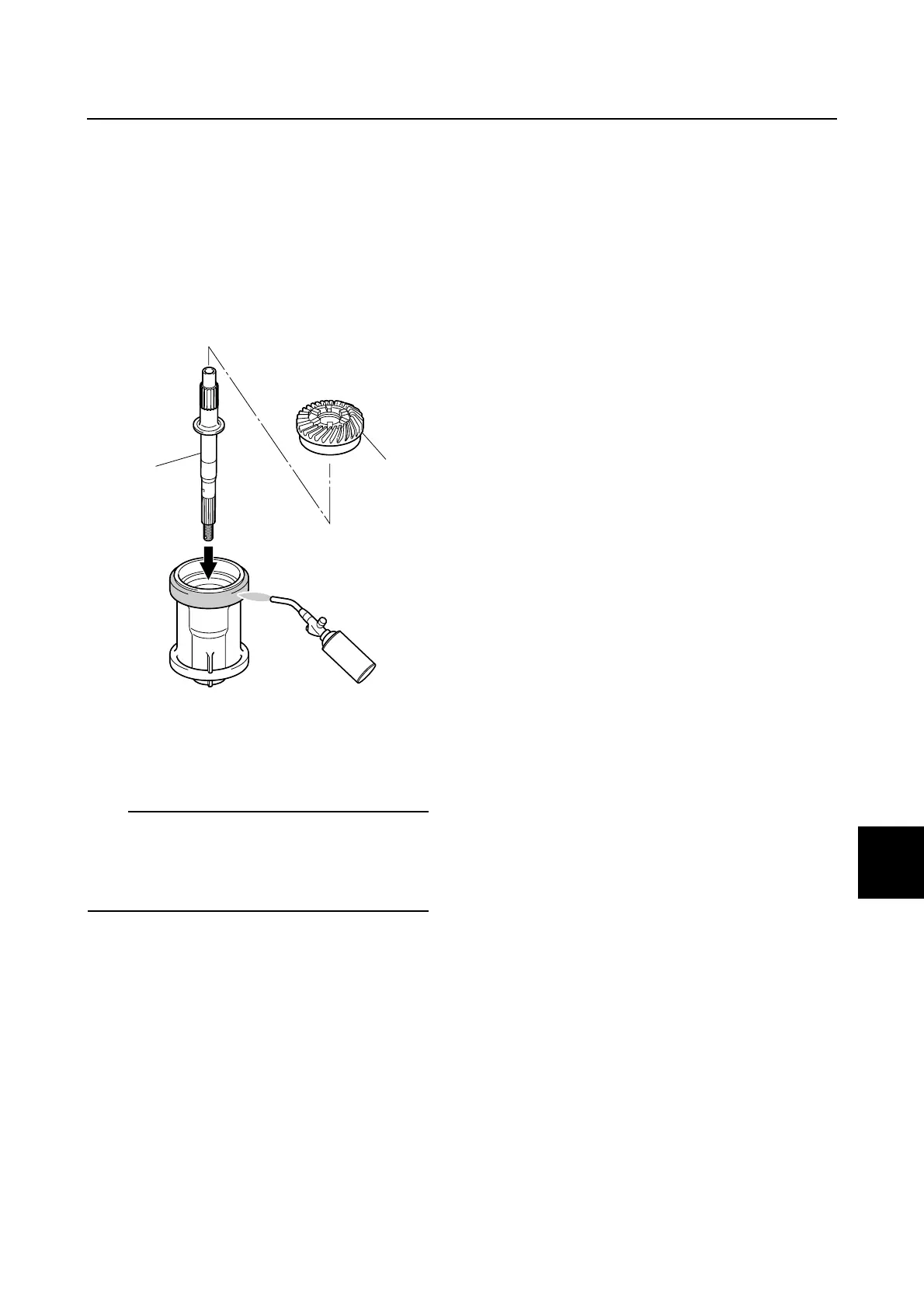

6. Heat the installation area of the taper roller
bearing outer race in the propeller shaft
housing with a gas torch, and then install
the propeller shaft e and forward gear
assembly f. NOTICE: When heating
the propeller shaft housing, heat the
entire installation area evenly.
Otherwise, the propeller shaft housing
could be damaged.
7. Measure the free play again, to make
sure that the free play falls within
specification.
TIP:
If the free play is outside of the specified
range, it is suspected that the forward gear
taper roller bearing may not be installed prop-
erly in the propeller shaft housing.
e
f
