9-4

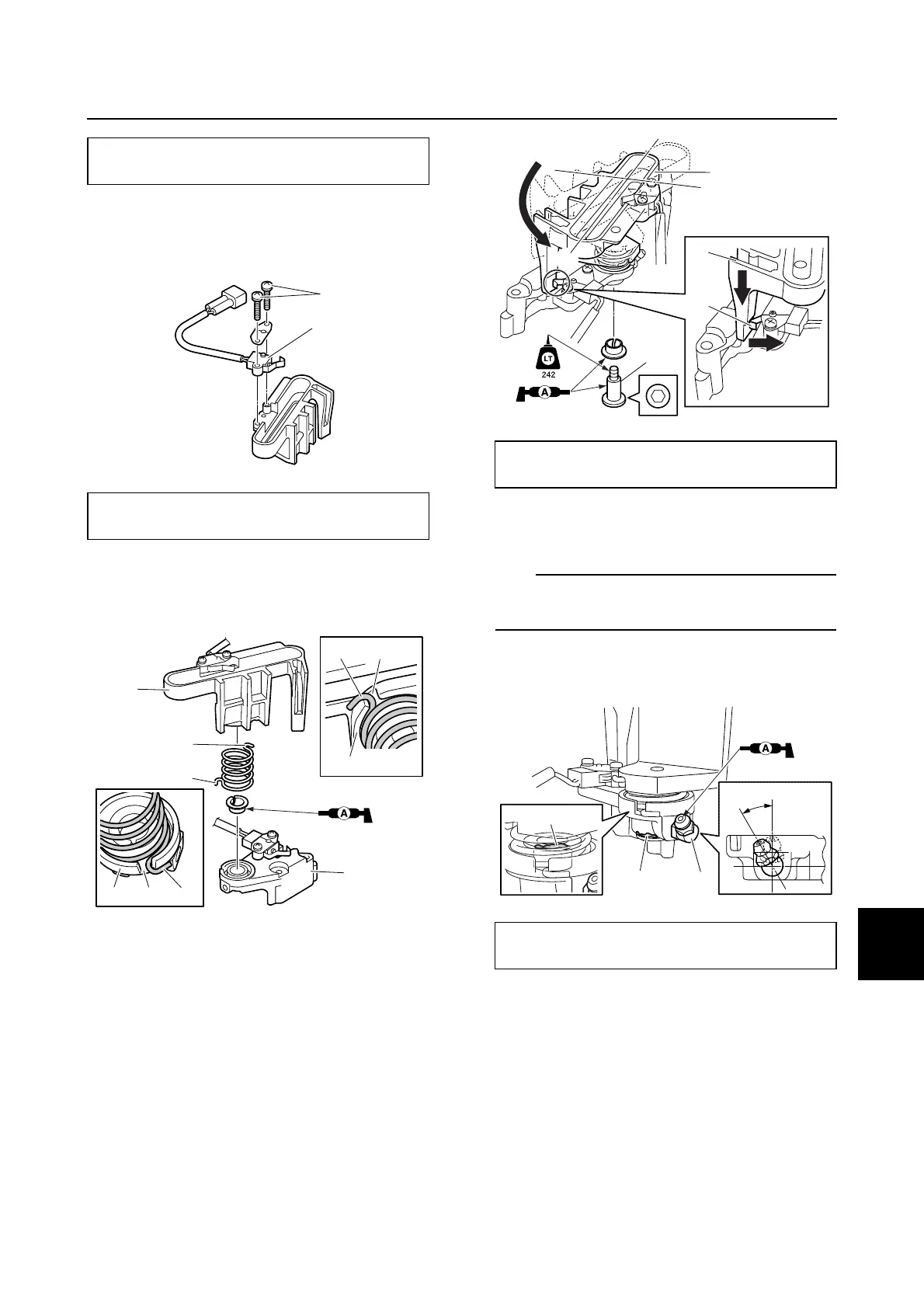

Shift rod and shift bracket
0
1
2
3
4
5
6
7
8
9
10
A
2. Install the neutral switch c, and then
tighten the screws d to the specified
torque.
3. Install the spring end a into the cutout b
in the bracket e and the spring end c
into the cutout d in the bracket f.
4. Turn the bracket e to the position e,
push it down, and then install the shift
bracket bolt g temporarily. NOTICE:
Move the shift cut switch lever f in
direction g when pushing the shift
bracket e down, otherwise the lever
may be damaged.
5. Tighten the shift bracket bolt g to the
specified torque.
6. Install the grease nipple h, and then
tighten it to the specified torque.
TIP:
Make sure that the installation angle of the
grease nipple h falls within the range h.
7. Apply grease into the grease nipple until
grease comes out of the bushings k.
Screw b:
2.5 N·m (0.25 kgf·m, 1.84 ft·lb)
Screw d:
2.5 N·m (0.25 kgf·m, 1.84 ft·lb)
c
d
a
c
cd
f
e
ab
f
e
Shift bracket bolt g:
19 N·m (1.9 kgf·m, 14.0 ft·lb)
Grease nipple h:
1 N·m (0.1 kgf·m, 0.7 ft·lb)
e
f
g
e
g
e
h
k
k
30˚
h
