9-22
Oil pan and exhaust manifold
0
1
2
3
4
5
6
7
8
9
10
A

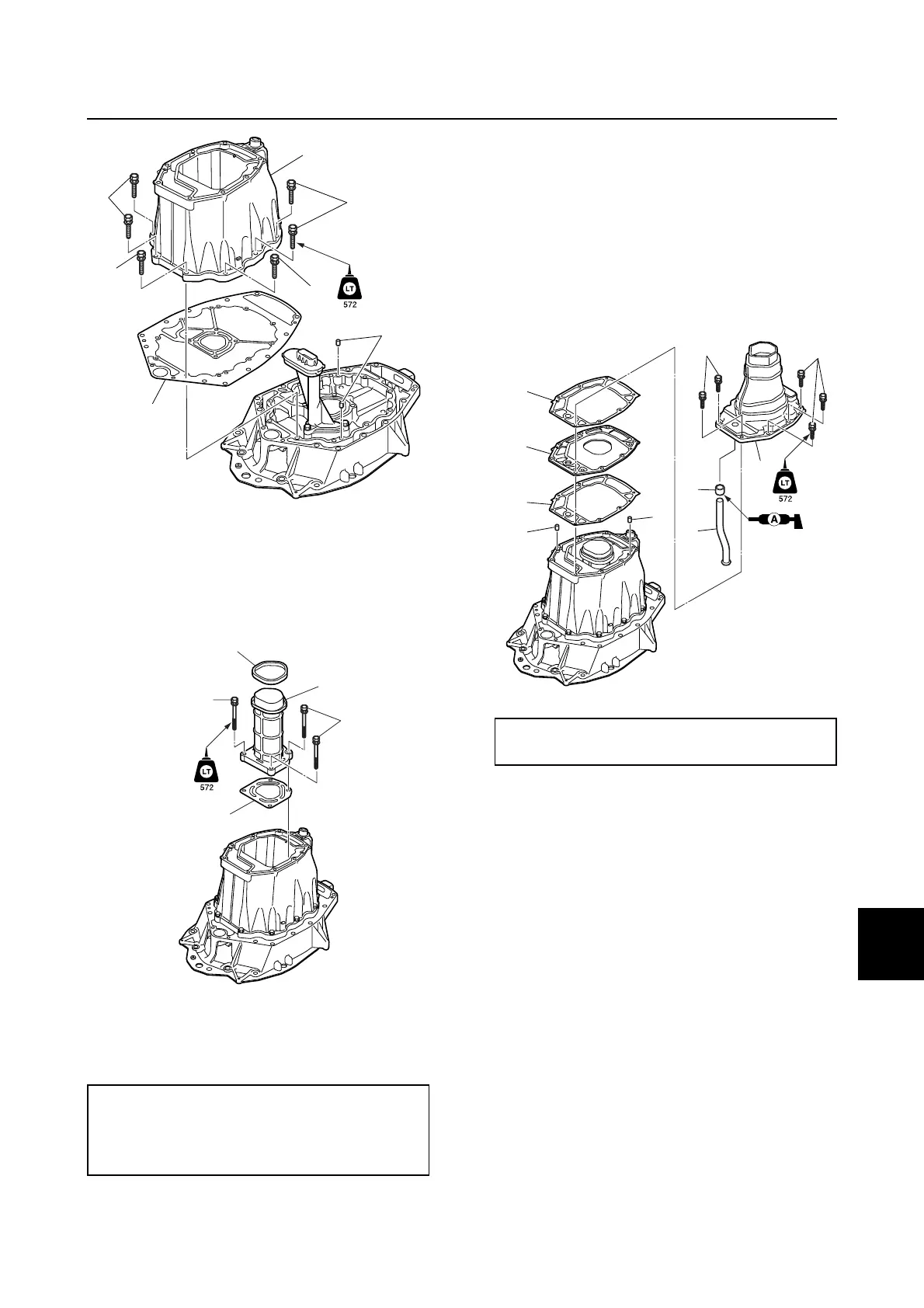

3. Install a new gasket h, the exhaust
manifold i, rubber seal j, and then
tighten the exhaust manifold bolts k
temporarily.
4. Tighten the exhaust manifold bolts k
first, and then tighten the oil pan bolts g
to the specified torques.
5. Install the rubber seal l and cooling
water pipe m.
6. Install the dowels n, new gaskets o,
and the plate p, and then install the muf-
fler assembly q.
7. Tighten the muffler assembly bolts r to
the specified torque.
Exhaust manifold bolt k:
20 N·m (2.0 kgf·m, 14.8 ft·lb)
Oil pan bolt g:
20 N·m (2.0 kgf·m, 14.8 ft·lb)
d
e
f
g
g
g
g
h
i
j
k
k
Muffler assembly bolt r:
20 N·m (2.0 kgf·m, 14.8 ft·lb)
l
m
n
n
o
o
q
r
p
r
