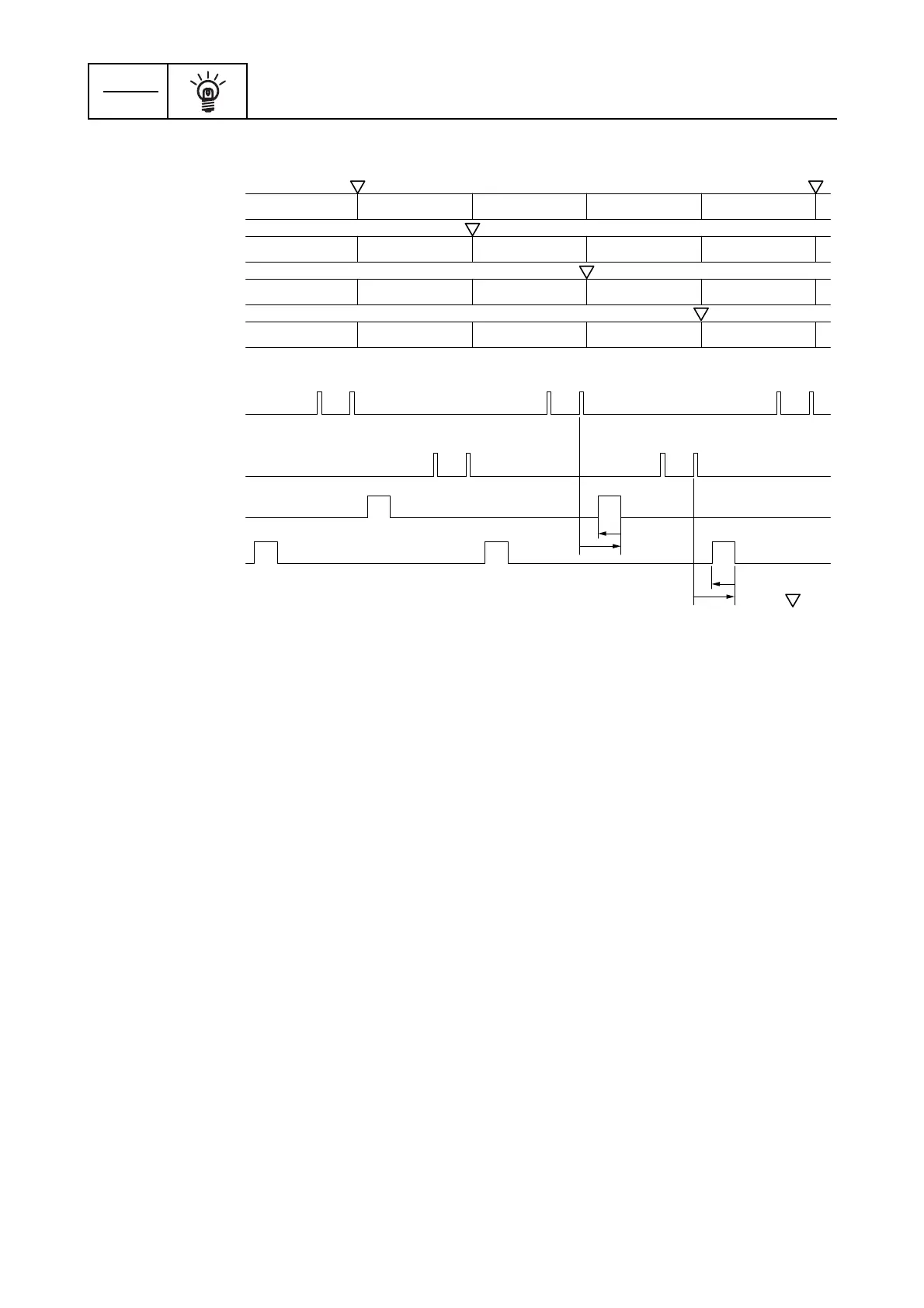

Technical features and description
Normal group injection
A Compression TDC
A
Cylinder 1
Cylinder 3
Cylinder 4
Cylinder 2
Pulser coil signal 1
Pulser coil signal 2
Injection #1 and #4
Injection #2 and #3
Compression Combustion Exhaust Intake Compression
Compression Combustion Exhaust IntakeIntake
Compression Combustion ExhaustIntakeExhaust
Combustion Exhaust Intake Compression Combustion
BTDC70° BTDC10°
#1 and #4
BTDC70° BTDC10°
#1 and #4
BTDC70° BTDC10°
#1 and #4
BTDC70° BTDC10°
#2 and #3
BTDC70° BTDC10°
#2 and #3
