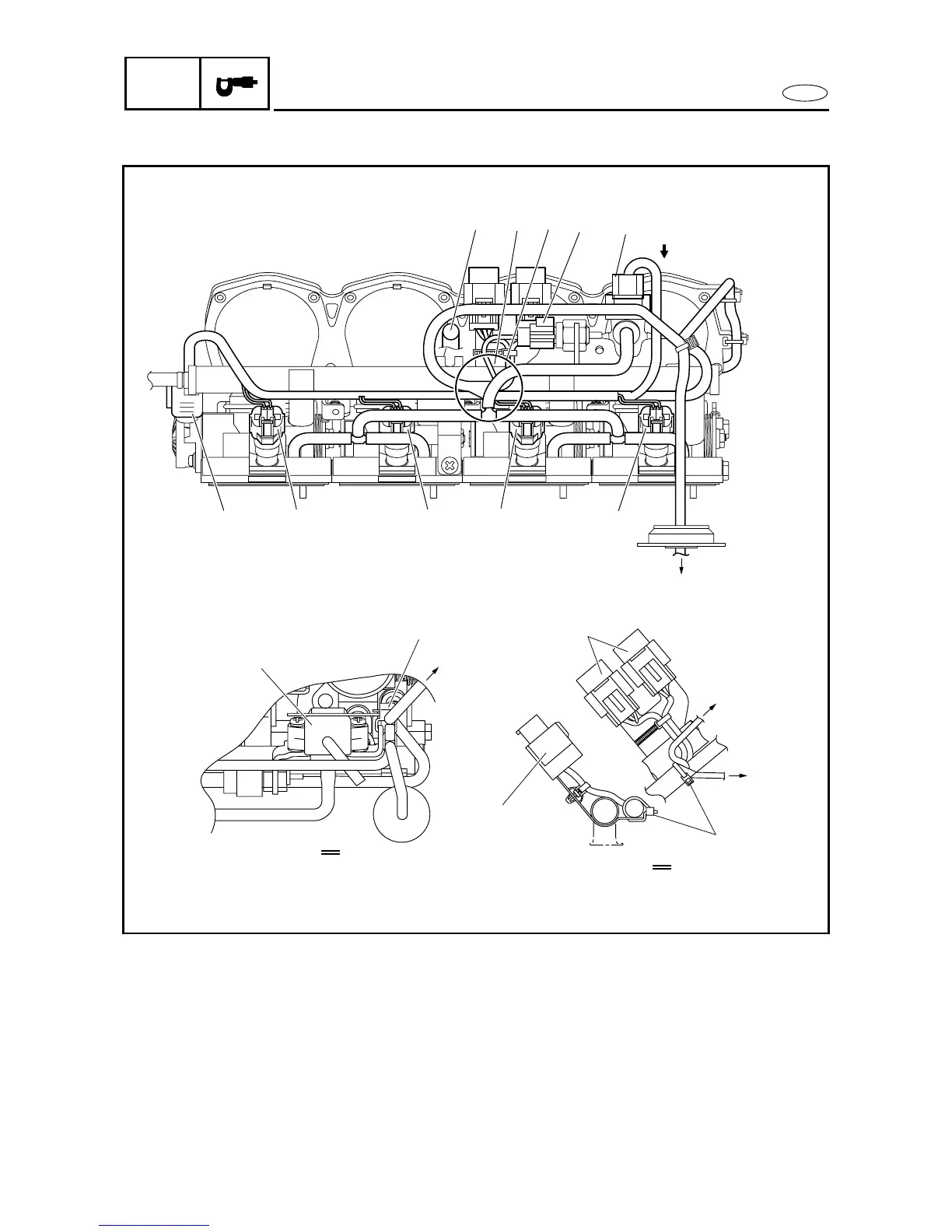

CABLE AND HOSE ROUTING (For FX/FX Cruiser)
Ê
A
ÈÉ
B
1
2
3
4
5
6
7
2
8
A
B
Ï
Î
Í
Ì
Ë
8
1 Intake air temperature sensor coupler
2 Intake air pressure sensor coupler
3 Fuel injector #4 coupler
4 Fuel injector #3 coupler
5 Fuel injector #2 coupler
6 Fuel injector #1 coupler
7 Throttle position sensor coupler
8 Joint coupler
È Route the throttle cable between the sub-wiring
harness.
É Route the sub-wiring harness under the intake
vacuum hose.
Ê To wiring harness
Ë To intake air temperature sensor coupler.
Ì To fuel injector #3 coupler
Í Fasten the sub-wiring harness to the joint cou-
pler bracket with a plastic tie as shown in the
illustration.
