7.3 Program Table Operation
7.3.1 Types of Operation
7-15
Pressing Operation
For pressing operation, target positions are specified as the target positions (POS) in the pro-
gram table. The motor is moved to the current target position and then pressing operation is
started from that position (POS). The motor moves to the current target position (POS) at the
positioning speed (SPD).
From the pressing starting position, pressing operation is started at the pressing speed (PSPD).
Pressing operation is performed at the pressing torque limit (PTLIMT) or less for the pressing
travel distance (INPOS). The /INPOSITION signal turns ON when pressing operation has been
performed at the torque threshold (CLLV) or higher for the pressing operation pressing time
(PnBE4).
Set the pressing travel distance in INPOS.

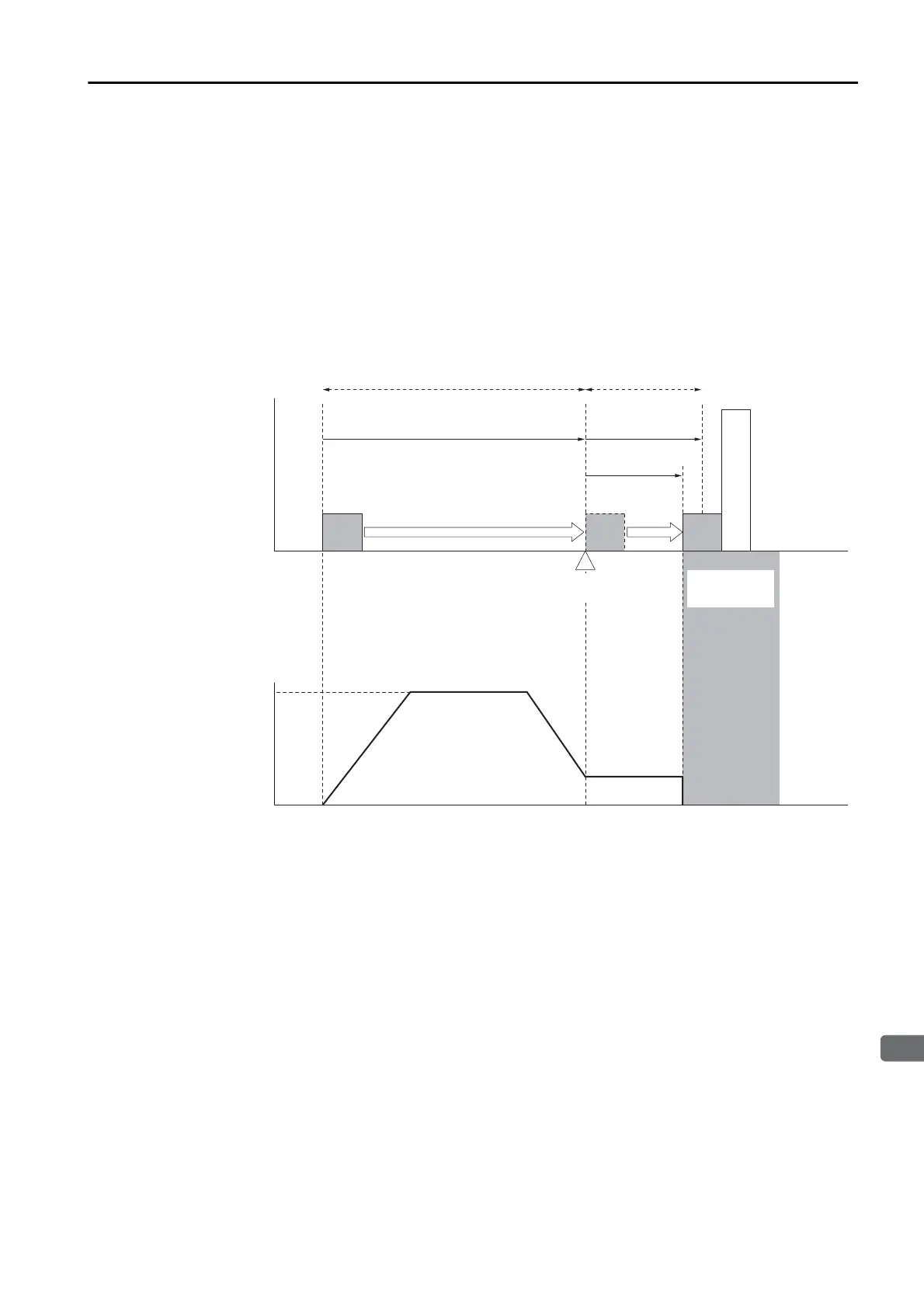

Pressing operation is illustrated conceptually in the following figure.
Pressing operation may not always work well depending on mechanical factors, such as the
relation between the pressing travel distance (INPOS) and the position of the pressed object.
Examples of when pressing operation does not work well are provided below.
Operation Pattern
Speed
SPD
Time
Position
Movement at SPD
Travel distance (POS)
Pressing travel
distance (INPOS)
Positioning operation Pressing operation
Actual travel
distance
Pressing operation
at PTLIMT
Pressing
starting position
Movement at PSPD
To Next Page
