7.3 Program Table Operation
7.3.6 SigmaWin+ Procedures
7-29
• Condition
• Wait Time
3.
Click the OK Button.
This concludes the setting procedure.
NEXT
Specify the operation to perform after execution of the current program step is completed.
1.
Double-click the cell to edit.

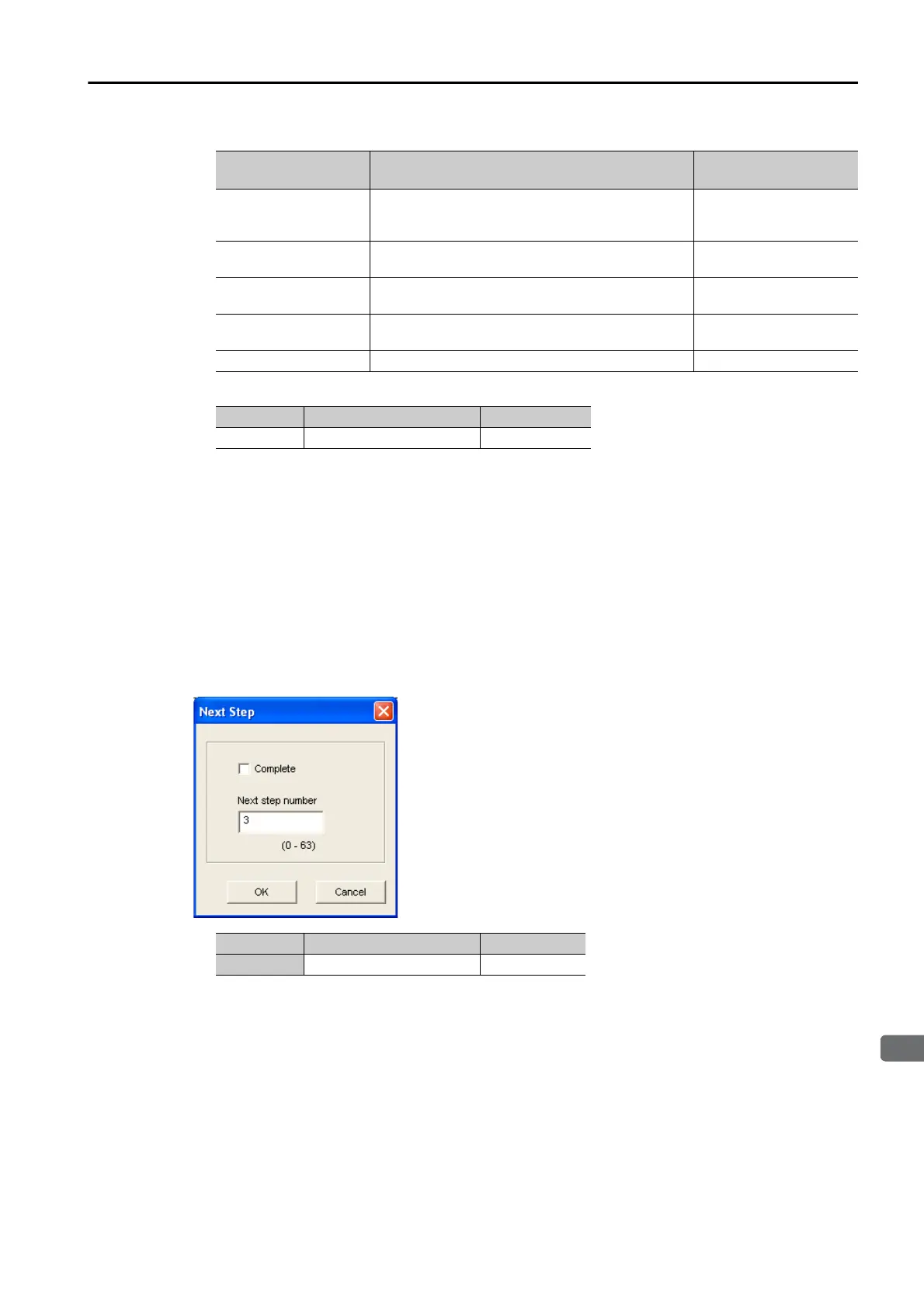

The Next Step Dialog Box will be displayed.
Executing a Next Step
2.
Clear the selection of the Complete Check Box and set a value between 0 and 63 in the
Next step number Box.
Item Description
Display in Program
Tab l e
Positioning complete
[default setting]
The step is ended when positioning is completed.
(The step is ended when the /INPOSITION signal
turns ON (closes).)
ITn
NEAR
The step is ended when the /NEAR signal turns
ON.
NTn
BUSY
The step is ended when the /BUSY signal turns
OFF (opens).
BTn
Wait time
There is no condition and only the wait time is
valid.
Tn
Same as previous step The same condition as the previous step is used. :
Unit for “n” Setting Range of “n” Default Setting
ms 0 to 99,999 IT0
Unit Setting Range Default Setting
–0 to 63END
To Next Page
