8.4 Estimating the Moment of Inertia
8.4.3 Operating Procedure
8-13
10.

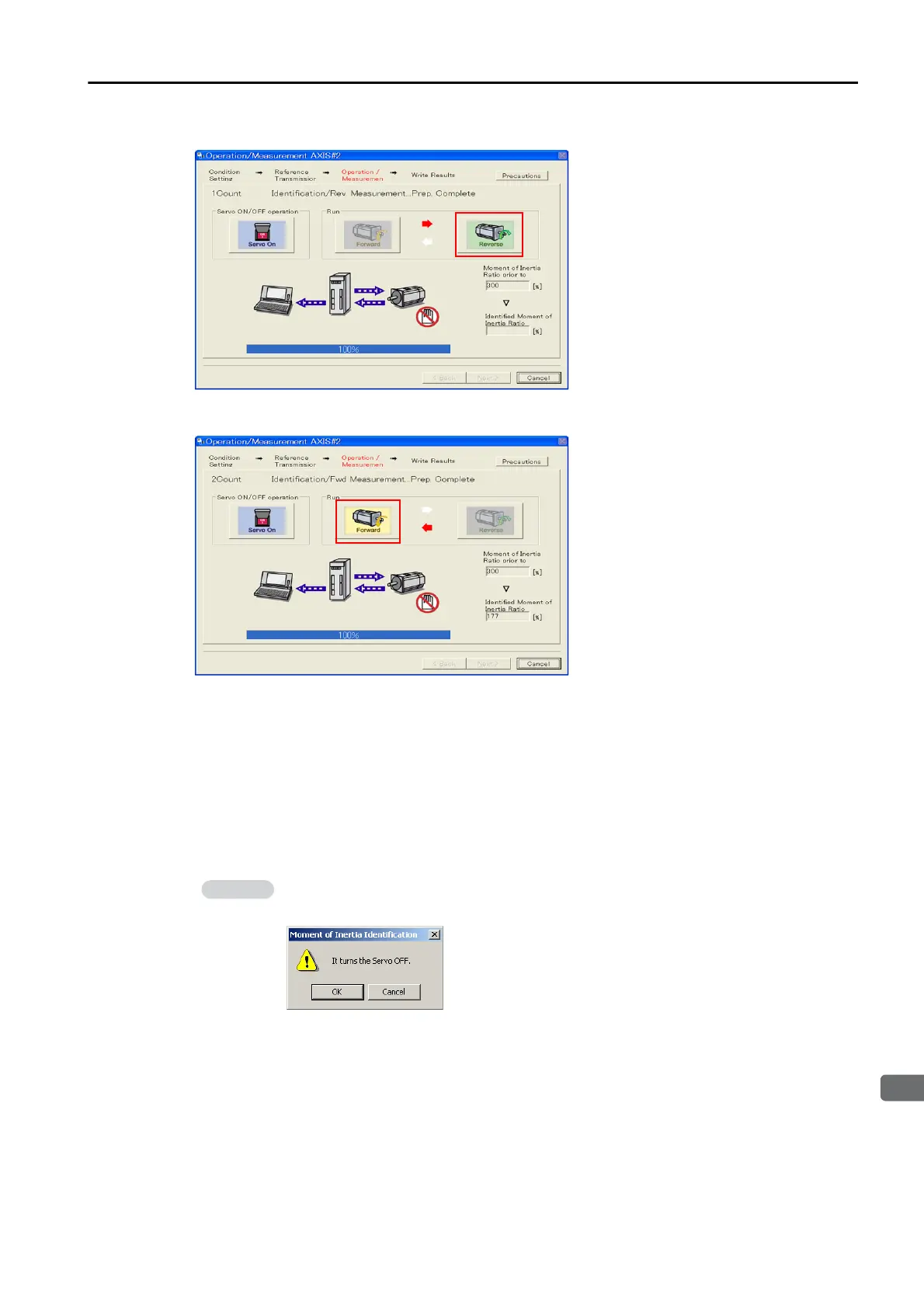

Click the Reverse Button.
The shaft will rotate in the reverse direction and the measurement will start. After the measurement
and data transfer have been completed, the Forward Button will be displayed in color.
11.
Repeat steps 8 to 9 until the Next Button is enabled.
Measurements are performed from 2 to 7 times and then verified. The number of measurements is
displayed in upper left corner of the dialog box. A progress bar at the bottom of the dialog box will
show the progress of the transfer each time.
12.
When the measurements have been completed, click the Servo On Button to change to
the SERVO OFF state.
13.
Click the Next Button.
The Write Results Dialog Box will be displayed.
If you click the Next Button before you change to the SERVO OFF state, the following
Dialog Box will be displayed. Click the OK Button to change to the SERVO OFF state.
To Next Page
