ABB AC 800F

3 Mounting the AC 800F
3-25
Ethernet structures:
- 10Base2
The 10Base2 standard uses a thin coaxial cable (type RG58U) and is used for
short-distance networks (max. segment length 185 m, no links between
buildings) with few nodes.
- 10Base5
This standard is based on a thick coaxial cable. Possible 10Base5-applications
are networks of medium size installations within one building, with a medium
number of nodes. Refer to Section 4.2.2 for details.
- 10BaseT
This standard uses a twisted-pair cable. The nodes are linked with each other in
a star-like network via hubs. Possible applications are networks over short
distances within one building, with many nodes.
- 10BaseFL
This standard describes the use of fiber-optic cables. It ensures high immunity
to interference and a protective separation of the nodes from other circuits. To
be used for links between buildings or over long distances. Refer to Section
4.2.4 for details.
Plug Ethernet modules in E-slots, only!
The AC 800F slots are subdivided into the following groups:
P (Power), E (Ethernet) and F (fieldbus modules).
Plug the Ethernet modules in slot(s) E1 and/or E2.
Do not plug in any other slot.

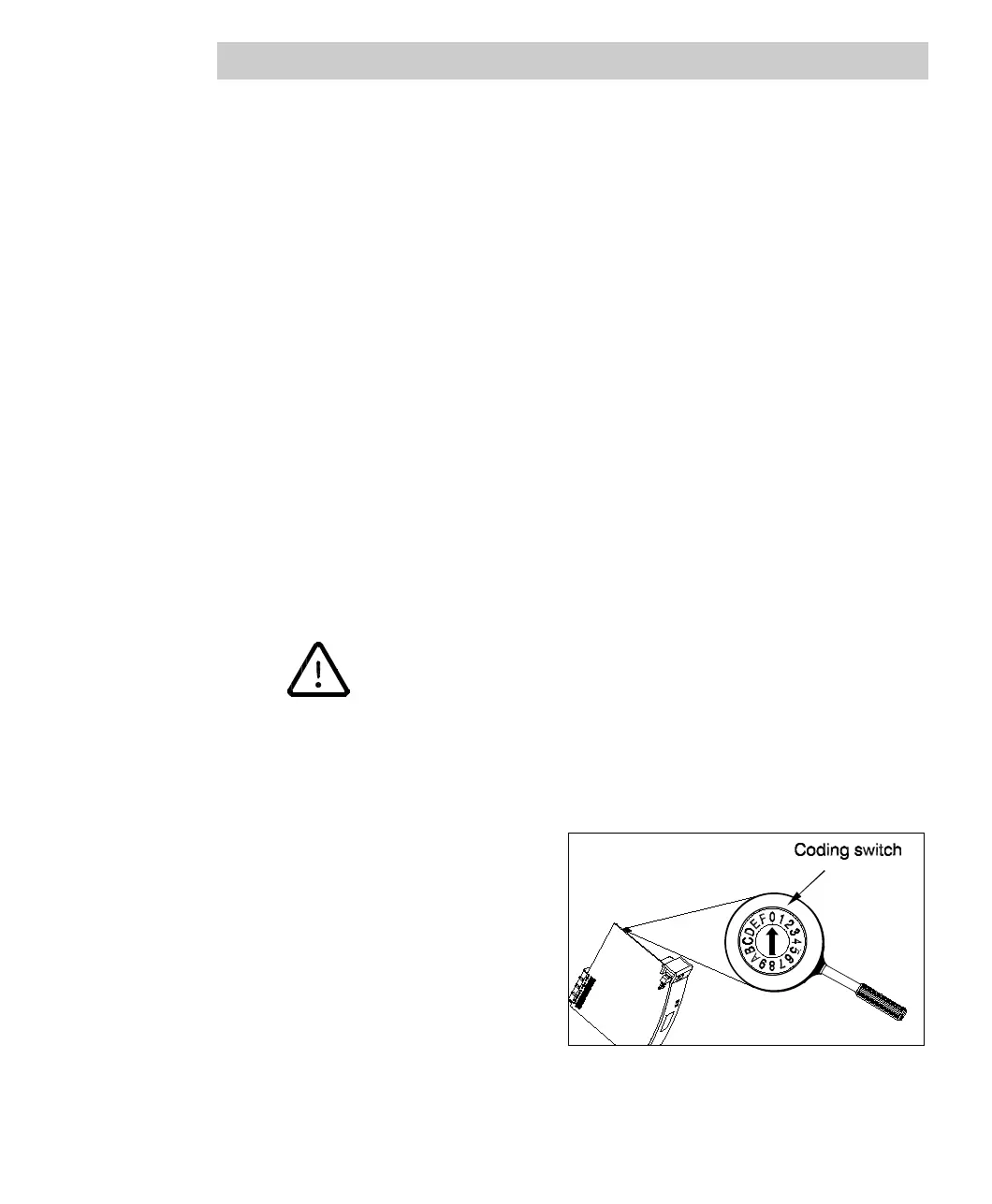

A coding switch is located on
the top edge of every Ethernet
module. It is to be used for setting
the AC 800F IP address.
Refer to Section 5.3.1 for details.
Fig. 3-11 Ethernet module coding switch
