ABB AC 800F

3 Mounting the AC 800F
3-2
• Special contact ledge
RW 855F for operation
outside cabinets
If the device is mounted outside a cabinet, the special contact ledge
RW 855F must be used.
3.1.1 Dimensions and mounting depth
The AC 800F is mounted either to a top hat rail (DIN TS35/EN 50022 profile) or
directly to the wall (using mounting material RW 856F). Figure 3-1 shows the
AC 800F dimensions without connected cables, connectors and strain
relief/contact ledge.
The AC 800F housing is 239 mm (9.4“ or 42 part units) wide and 161 mm (6.34“ or
3.6 HU) high, without contact ledge. The overall height with strain relief/contact ledge
is 202 mm (7.95" or 4.54 HU).
The mounting depth is 164 mm (6.46“), without connectors and cables.

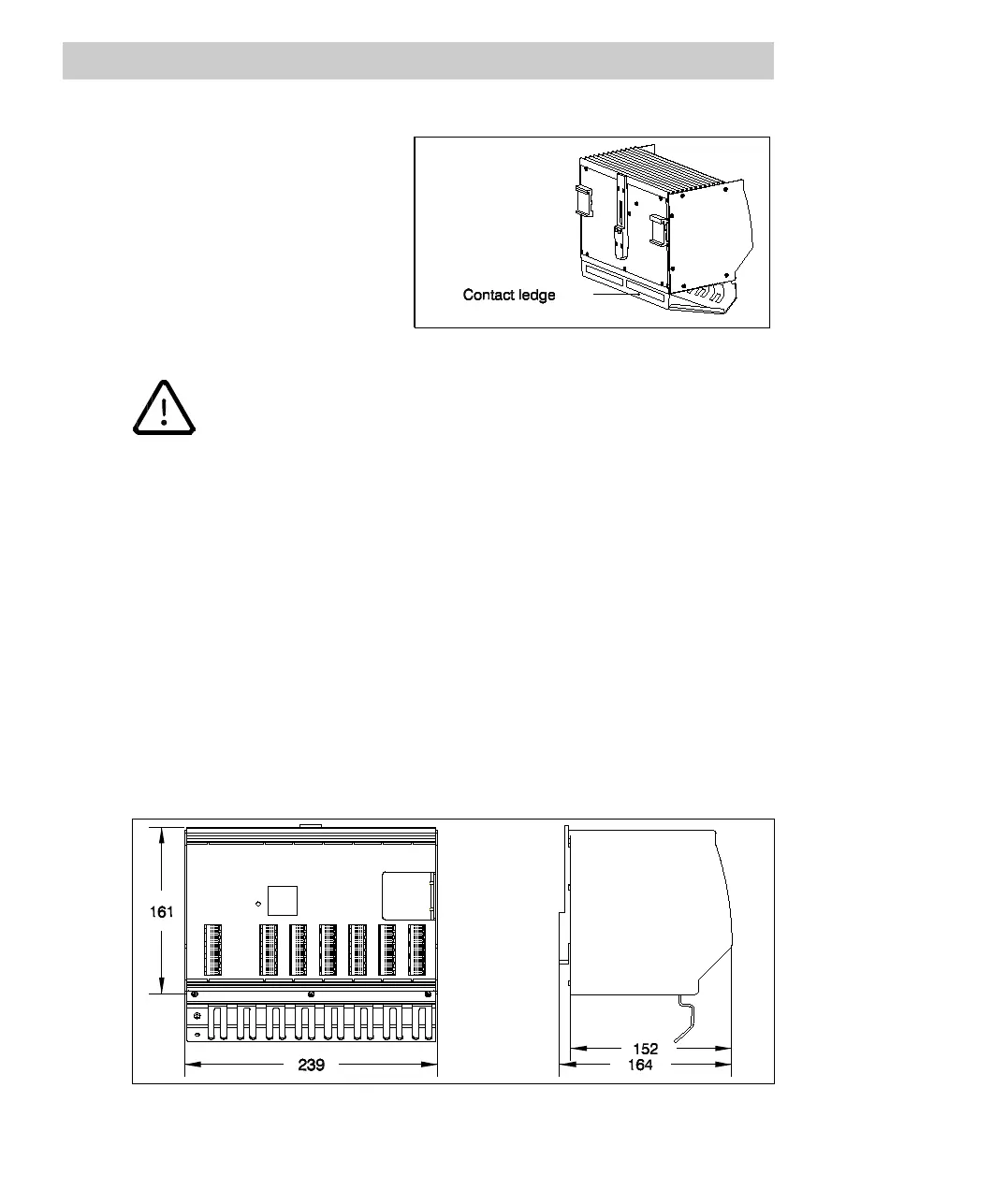

Fig. 3-1 Dimensions of AC 800F housing
