ABB AC 800F

4 Cabling the AC 800F
4-45
4.2.10.5 Redundant 10BaseFL cable link
In order to meet higher system bus availability requirements, redundant fiber optic
cable links can be laid between the network concentrators. In this case it also
recommended to use network concentrators with redundant power supplies. The

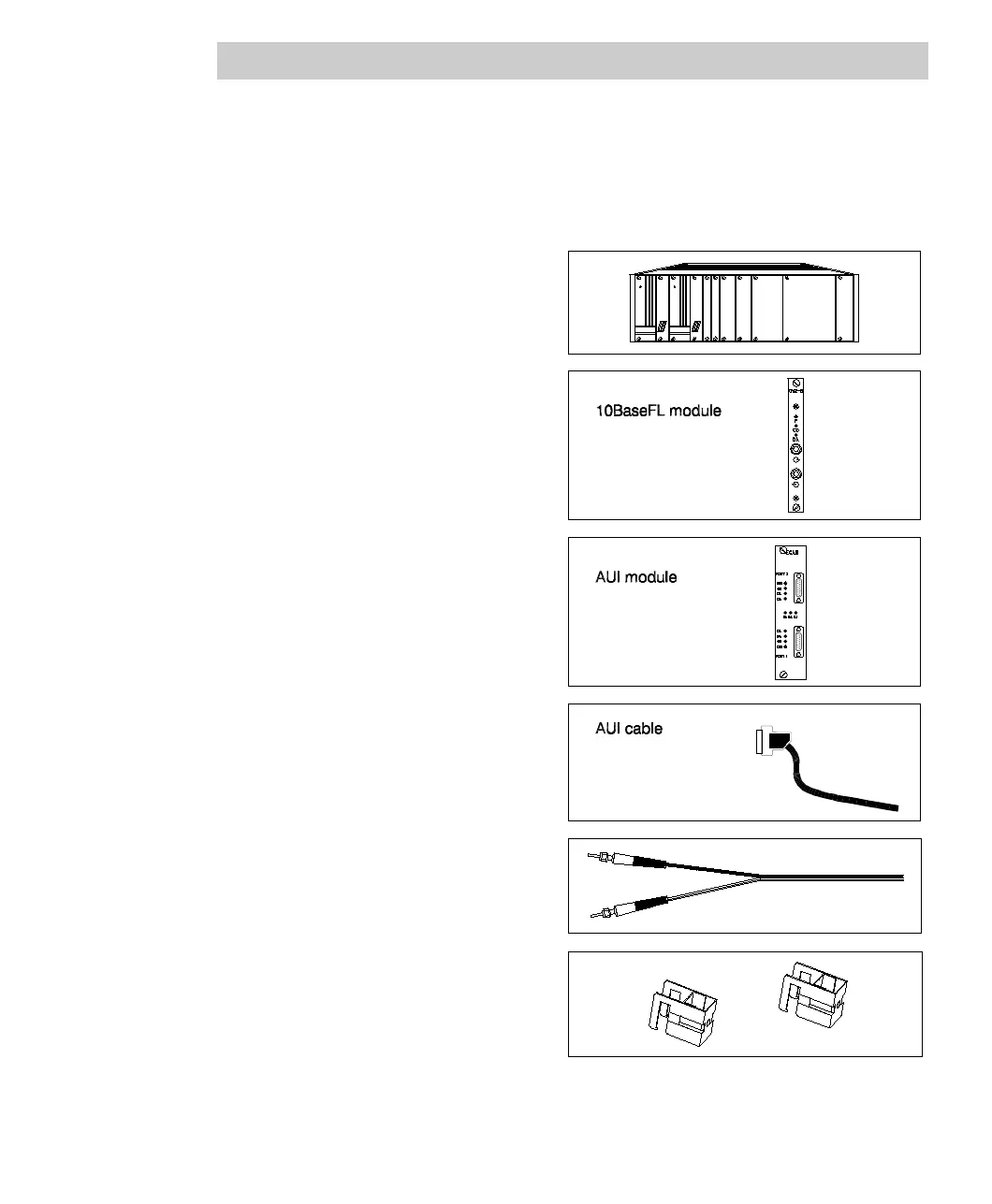

following parts are needed for a redundant link:
Network concentrator
with redundant power supply
10BaseFL module
AUI module
AUI cable
10BaseFL cable
Clip TV 83xF
