11.3 Terminal assignment of the fieldbus modules
11.3.1 Terminal assignment of FI 840F
Ethernet TP socket

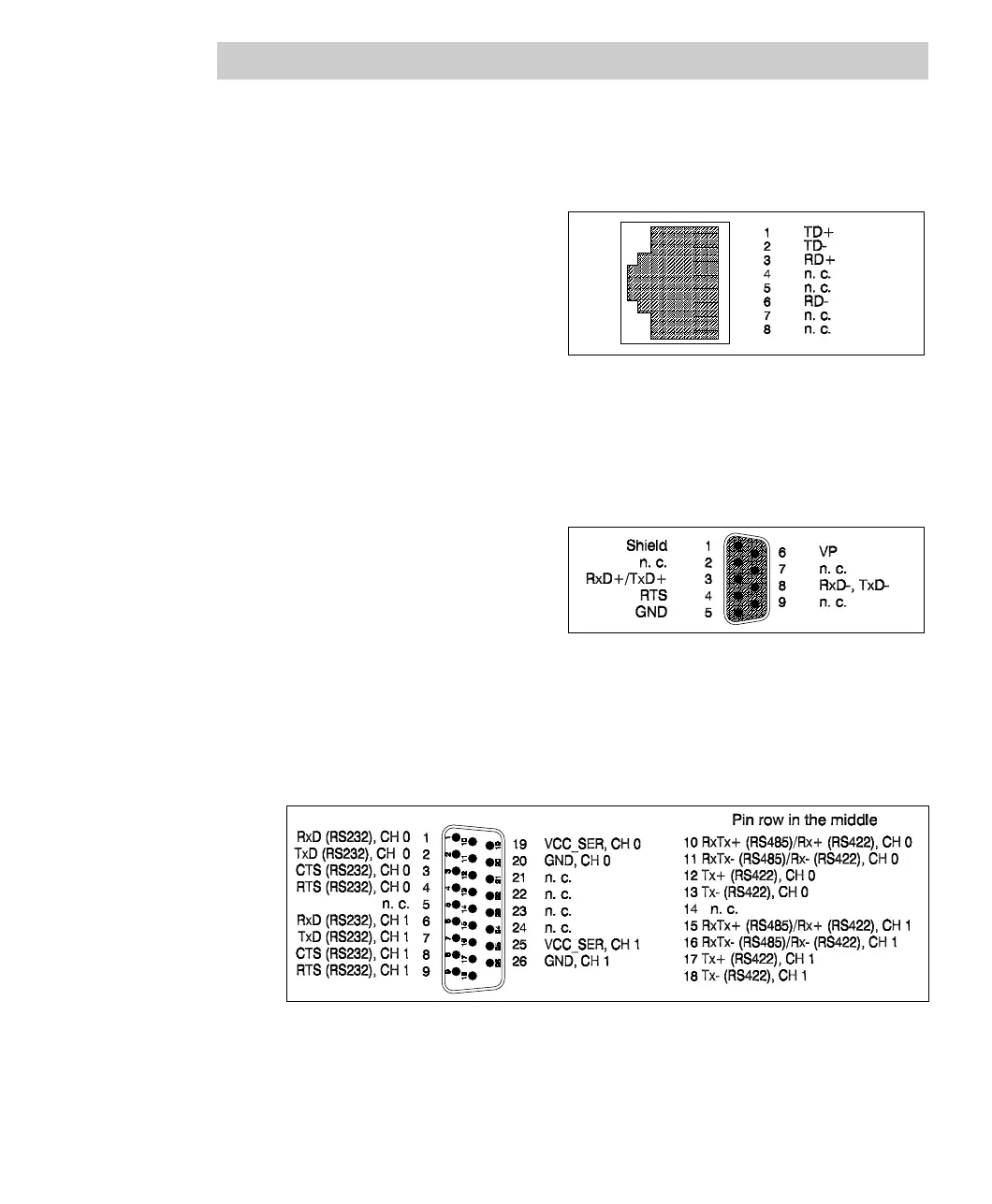

Fig. 11-15 Terminal assignment Ethernet TP, FI 840F
11.3.2 Terminal assignment of FI 830F
Communication plug
Fig. 11-16 Terminal assignment, FI 830F
11.3.3 Terminal assignment of FI 820F
Fig. 11-17 Terminal assignment FI 820F
