8.4.4 Satellite radio clock dimensions (half 19" size)

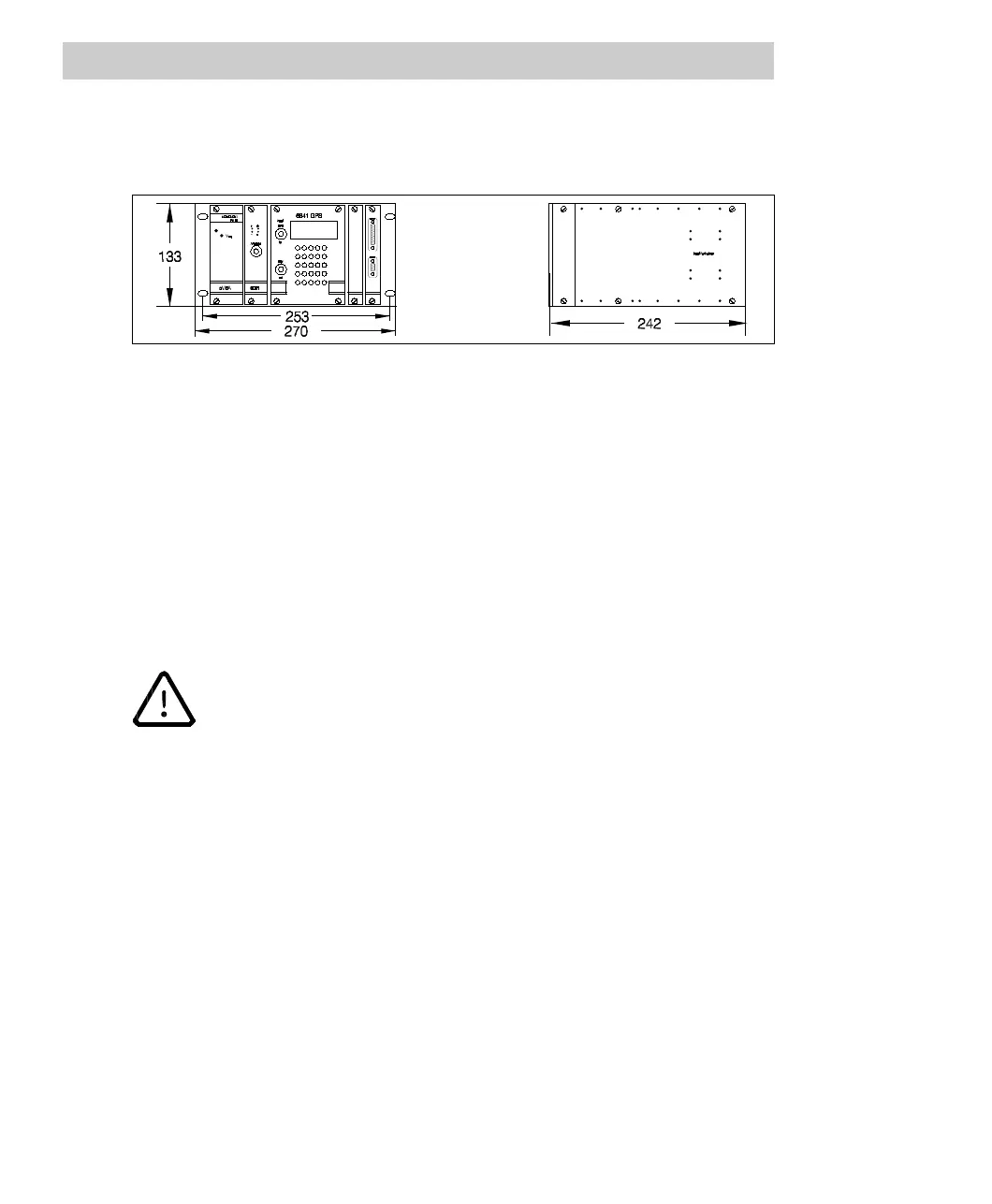

Figure 8-10 shows the satellite radio clock dimensional drawing.
Fig. 8-10 Satellite radio clock (half 19" size) dimensions
The dimensions of the full 19" size satellite radio clock are identical to those oft the
DCF77 radio clock. Refer to Section 8.3.2 for these dimensions.
8.4.5 Setting the satellite radio clock
Basic settings of the GPS satellite radio clock are made using the built-in keyboard
(user-guided through built-in LC display).
For a keyboard description and configuration instructions please refer to
the documentation delivered by Hopf with the clock.
8.4.6 Connecting the radio satellite clock to the AC 800F
The satellite radio clock is connected to any AC 800F of the Freelance 2000 system in
the same way as the DCF77 radio clock. The connection cable used for the DCF77
radio clock is also usable for the satellite radio clock (see Section 8.3.4).
