4 Cabling the AC 800F
4-29
Example:
The following components are needed for a network with 3 nodes
1 10Base5 cable
2 10Base5 terminating resistors
1 Grounding clip
3 10Base5/AUI transceivers
3 AUI cables
3 clips TV 83xF
Cable as shown below:

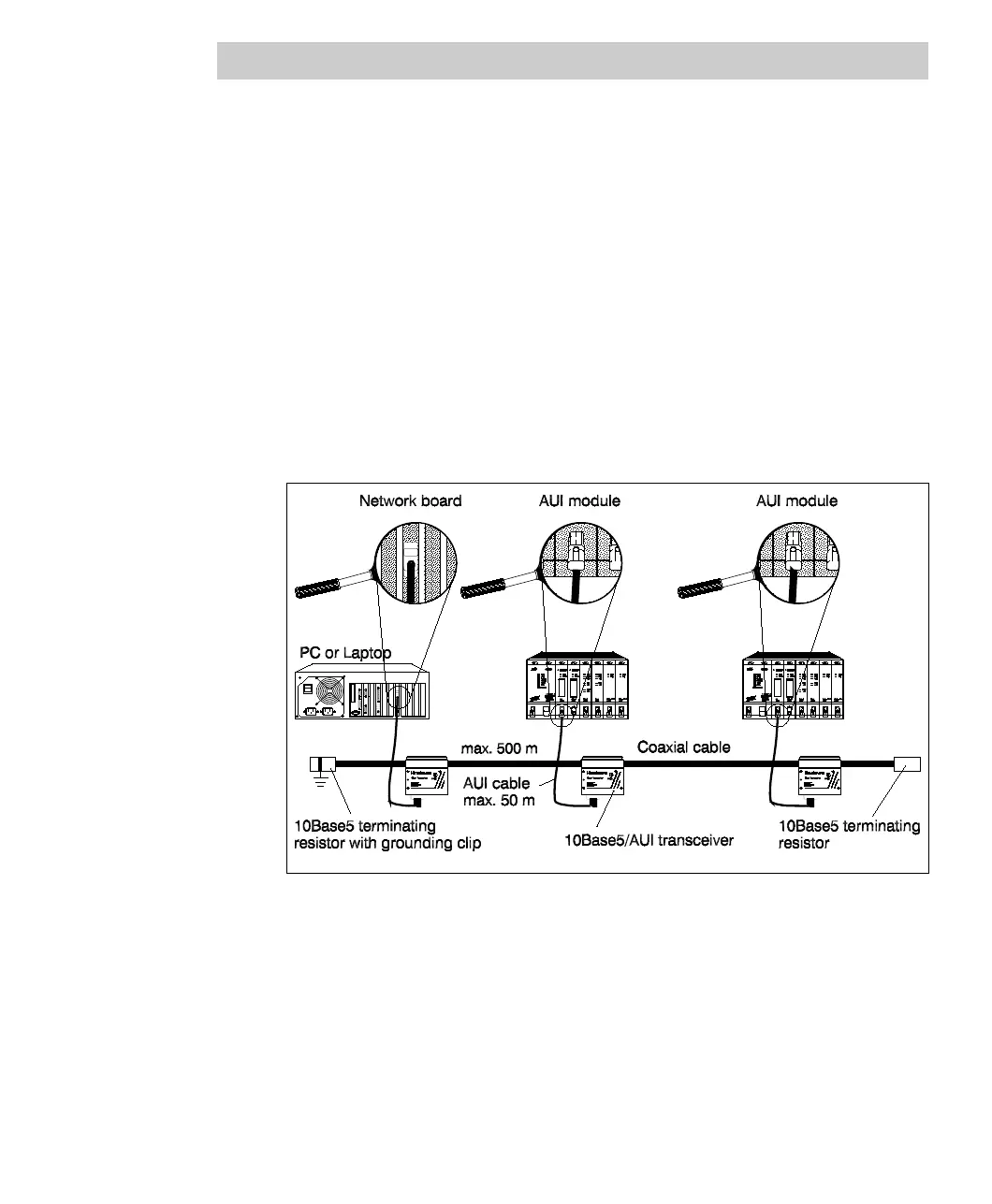

Fig. 4-16 Cabling a 10Base5 network with 3 nodes
