ABB AC 800F

11 Terminal Assignment
11-2

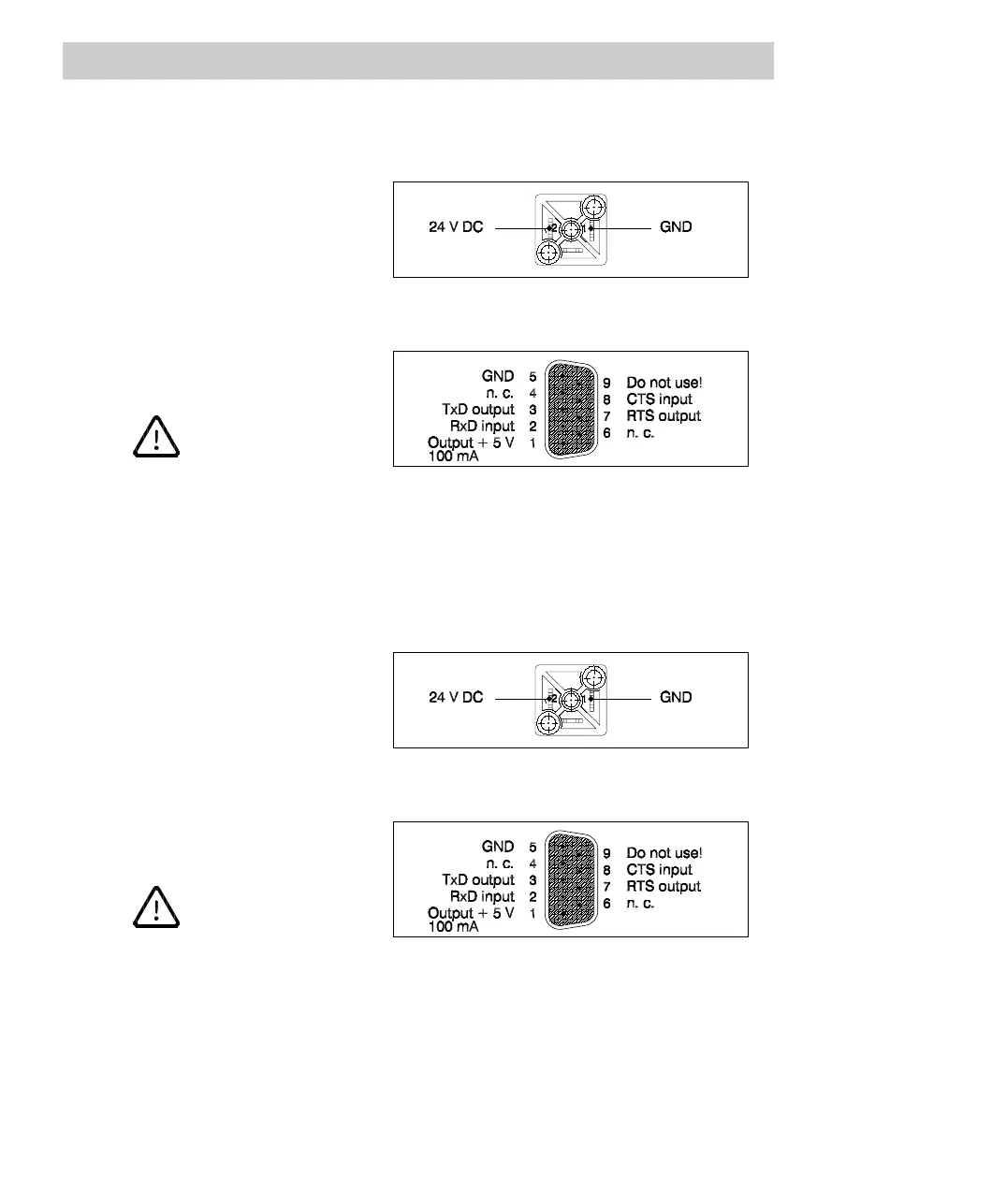

11.1.3 Terminal assignment of SD 802F
DC mains plug
Fig. 11-5 Terminal assignment mains plug, SD 802F
Diagnostic plug
Do not use pin 9!
Fig. 11-6 Terminal assignment diagnostic plug, SD 802F
11.1.4 Terminal assignment of SD 812F
DC mains plug
Fig. 11-7 Terminal assignment mains plug, SD 812F
Diagnostic plug
Do not use pin 9!
Fig. 11-8 Terminal assignment diagnostic plug, SD 812F
