ABB AC 800F

11 Terminal Assignment
11-4
11.2.4 Terminal assignment of EI 812F
Ethernet AUI socket

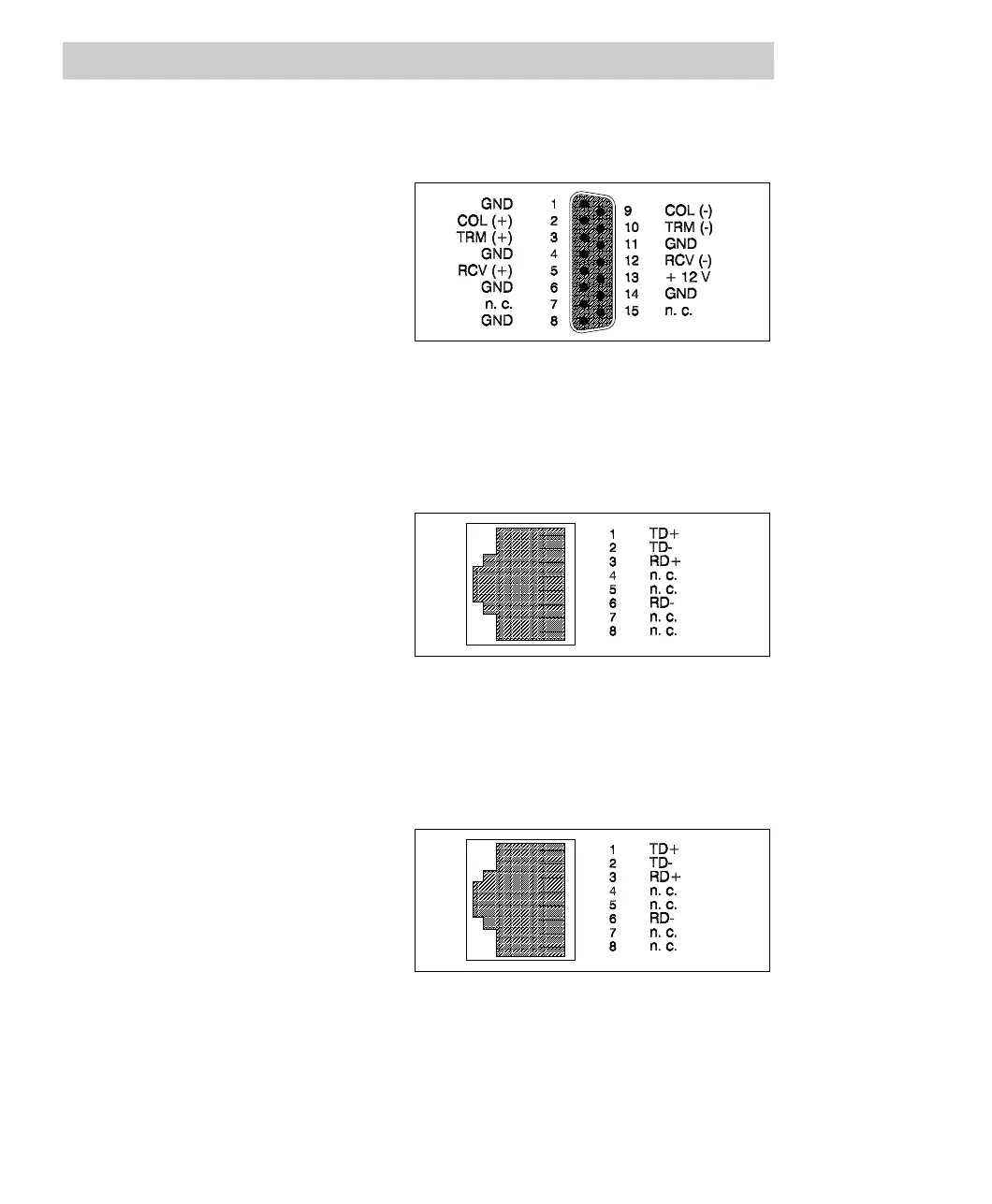

Fig. 11-12 Terminal assignment AUI socket, EI 812F
11.2.5 Terminal assignment of EI 803F
Ethernet TP socket
Fig. 11-13 Terminal assignment Ethernet TP, EI 803F
11.2.6 Terminal assignment of EI 813F
Ethernet TP socket
Fig. 11-14 Terminal assignment Ethernet TP, EI 813F
