ABB AC 800F

4 Cabling the AC 800F
4-3
4.1.2 Power supply module SA 811F (115 - 230 V AC)
Check the rating plate to see if
the power supply module is a
SA 811F one for connection to a
115 - 230 V AC mains.
• Prior to applying the mains voltage to it, always plug the power
supply module into the AC 800F and fasten it with screws.
Otherwise, live high voltage parts will be exposed and might be
touched by the operator.
• Connect only power supply module SA 811F to a 230 V AC or
115 V AC mains. Do not connect power supply module SD 802F/
SD 812F with 24 V input to 115 - 230 V AC. Otherwise, it will be
damaged or even destroyed.
Power supply module SA 811F has a protective separation and a wide range input
(115 - 230 V AC). Therefore, no special adjustment is required for adapting the unit to
different mains voltages.

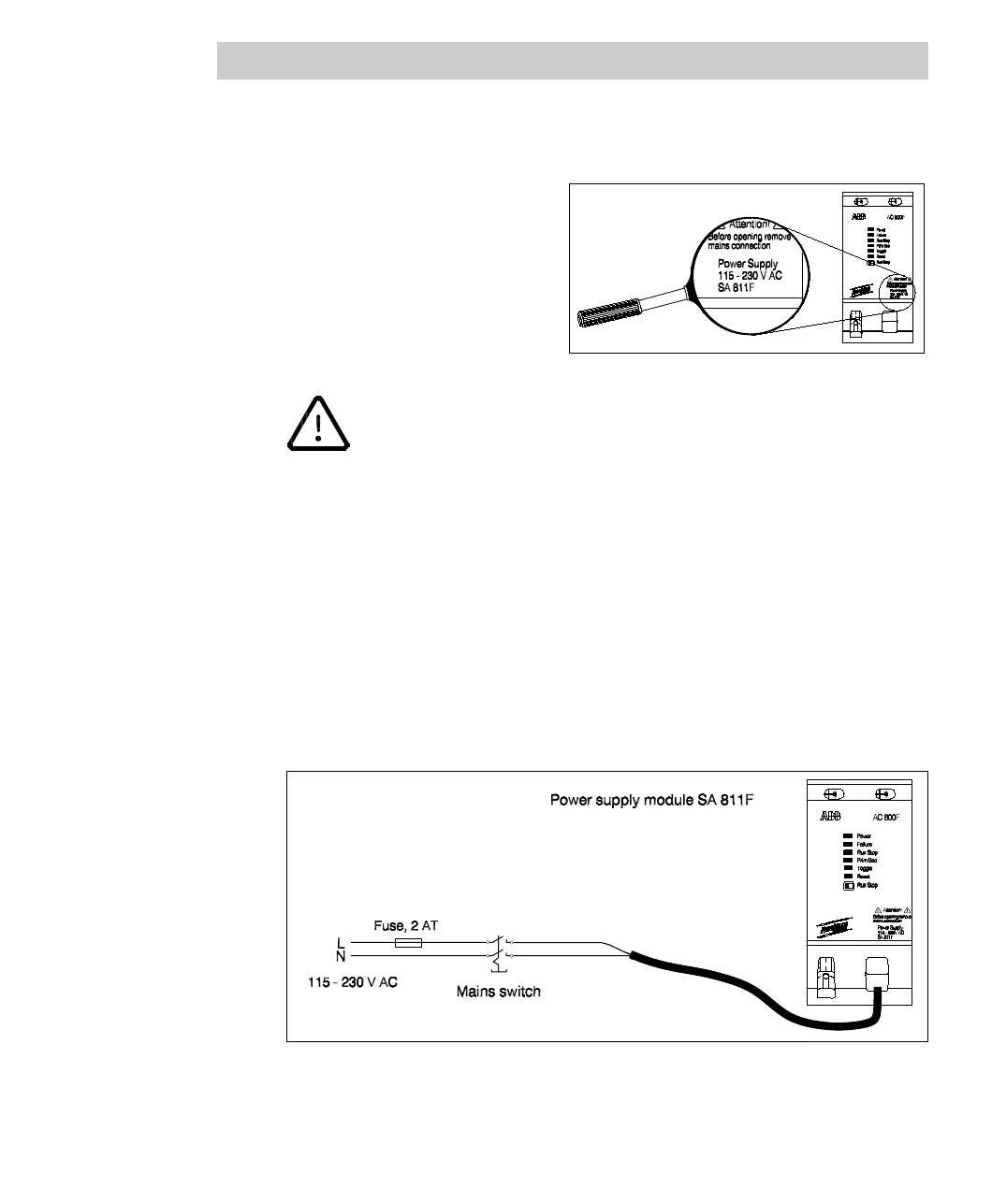

Cable power supply module SA 811F as seen in Fig. 4-3. Use the approved cable
TK 807F for this.
Fig. 4-3 Cabling power supply module SA 811F
