4 Cabling the AC 800F

4-23

Insulate 10Base2 F-

connector to avoid contact

with ground or conductive

parts of the building.

To connect the engineering station proceed in reverse order. The disadvantage

of this method is that the disconnected 10Base2 F-connector must not have any

contact with ground or any conductive parts of the building.

2. Connection via special junction boxes

If an engineering station is to be frequently connected or disconnected to/from a

10Base2 network it is recommended to use a 10Base2 junction box with

automatic make contact.

These boxes are provided with a micro switch which connects the bus through

when no plug is in the socket. When the plug of a new bus node is connected,

the node is automatically connected into the network. The junction boxes are

available on request.

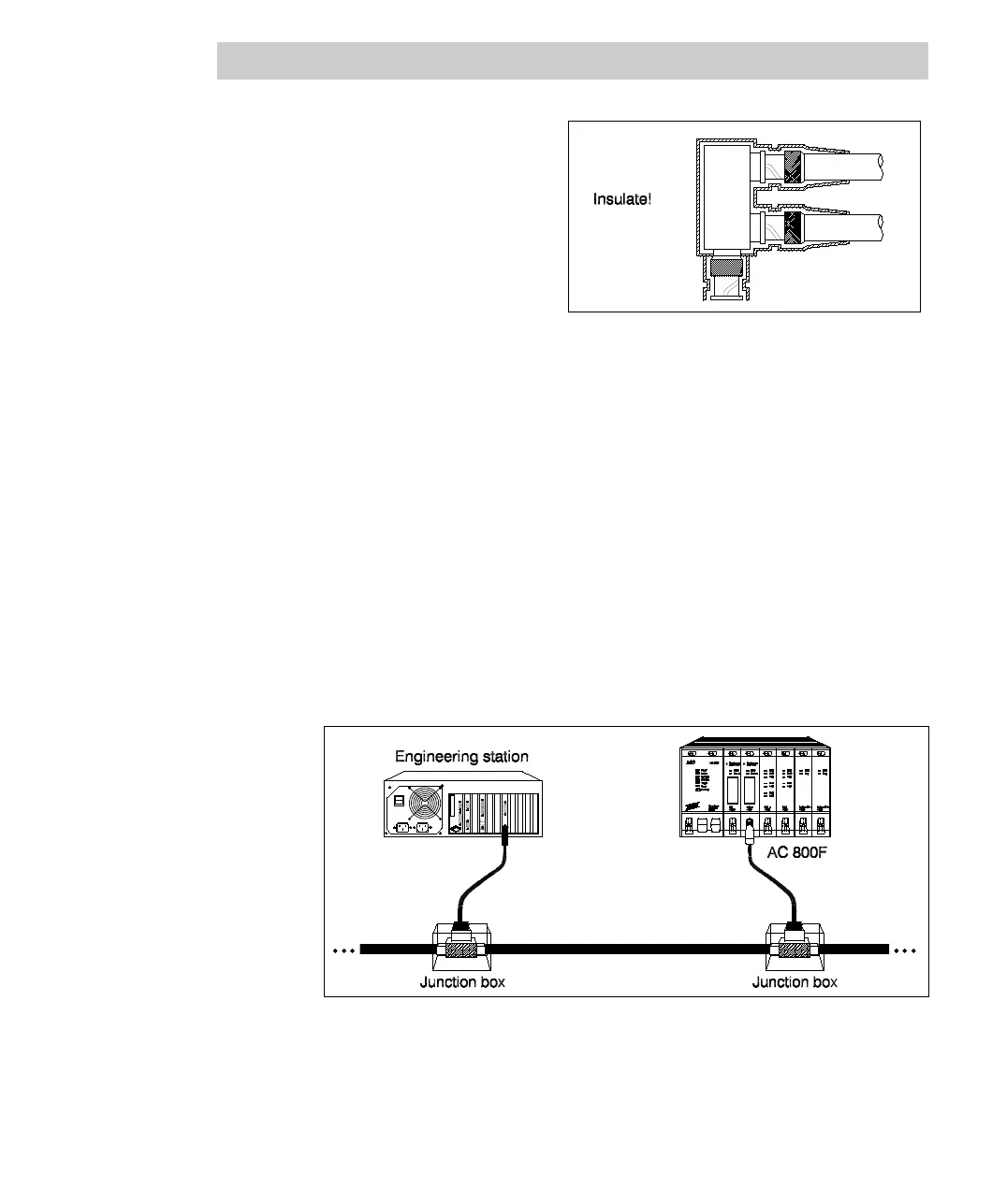

Fig. 4-13 10Base2 connection via junction boxes
