Connection example: AC 800F with I/O units and external termination

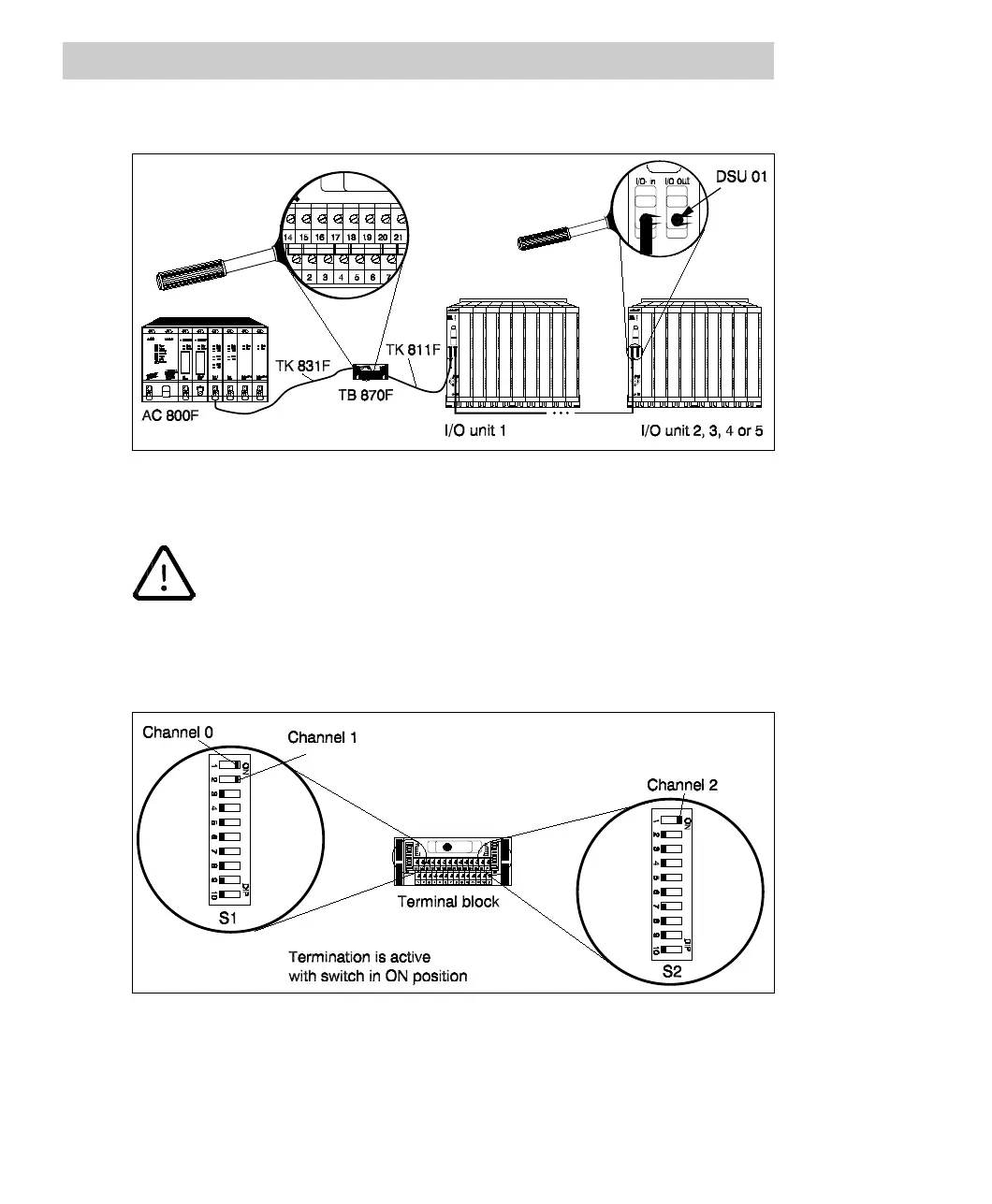

Fig. 4-73 CAN bus connection example, with external termination
With external termination always use terminals 14, 15, 17, 18, 20 and
21!
If the I/O units are connected to terminals 1, 2, 4, 5, 7 and 8, the CAN bus
is not terminated properly at its ends. Also, cable TK 831F acts as a
branch cable in this case.
Fig. 4-74 Connection example, terminal assignment
