4.2.7.2 Cabling a 10Base2 segment

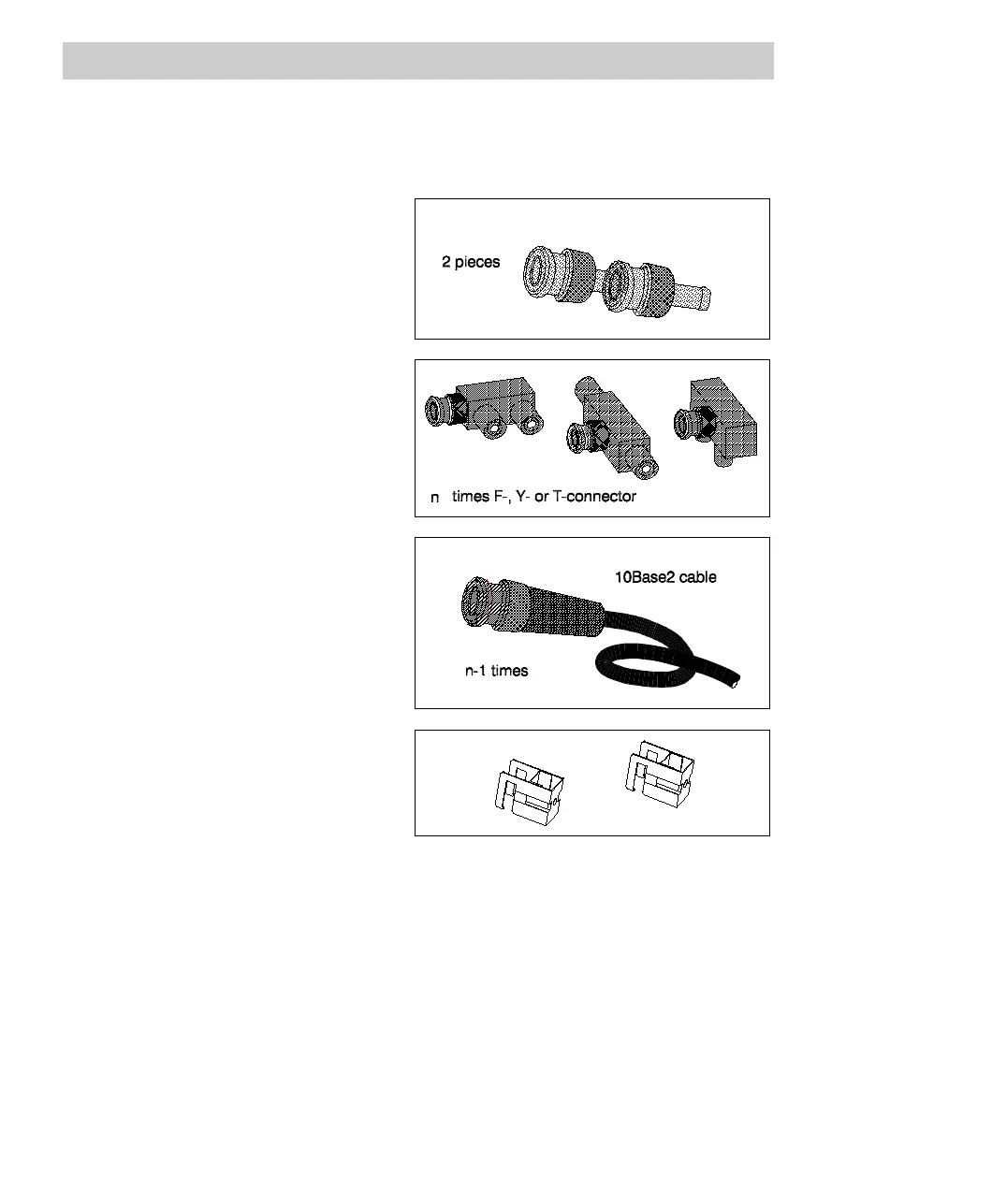

The following components are needed for cabling a 10Base2 segment with n nodes:
10Base2 terminating resistor
dual package
10Base2 F-connector,
10Base2 Y-connector or
10Base2 T-connector
All connectors have the same
function. However, only 10Base2
F-connectors canbeusedwith
10Base2 module.
10Base2 cable
Clip TV 83xF
(x → depending on diameter)
Example
The following components are needed for a network with three nodes:
1 dual package of terminating resistors
1 10Base2 Y-connector
2 10Base2 F-connectors
2 10Base2 cables
3 clips TV 83xF
