ABB AC 800F

4 Cabling the AC 800F
4-98

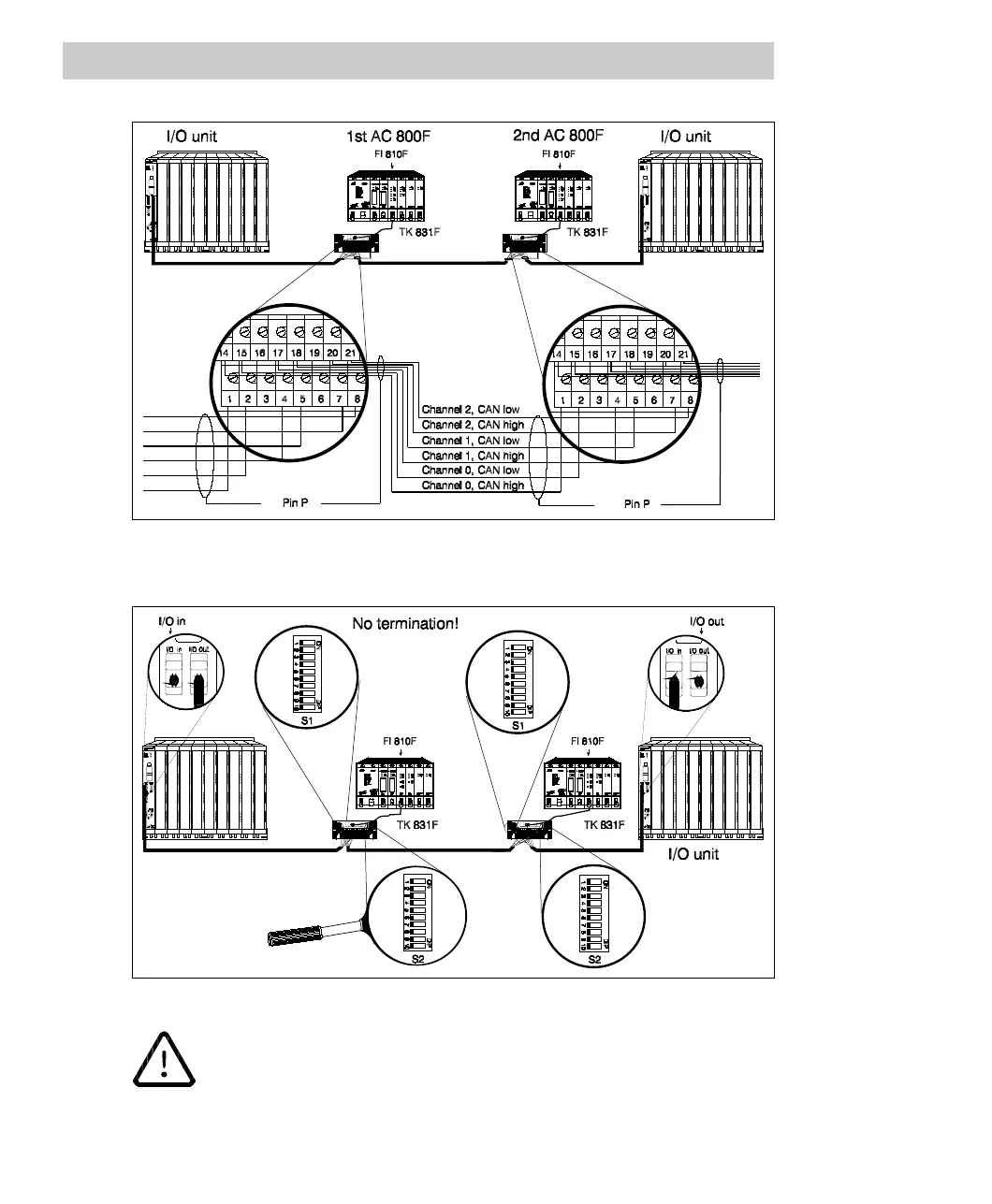

Fig. 4-77 Redundant cabling of the CAN bus, case 2
Terminate the individual components as seen in the illustration below:
Fig. 4-78 External termination for redundant cabling
• Do not set the jumpers on the FI 810 F modules!
• Make sure that the switches on both terminal blocks are in the OFF
position
• Remember the terminating resistors at both bus cable ends (DSU 01
connector for I/O units).
