ABB AC 800F

4 Cabling the AC 800F
4-36

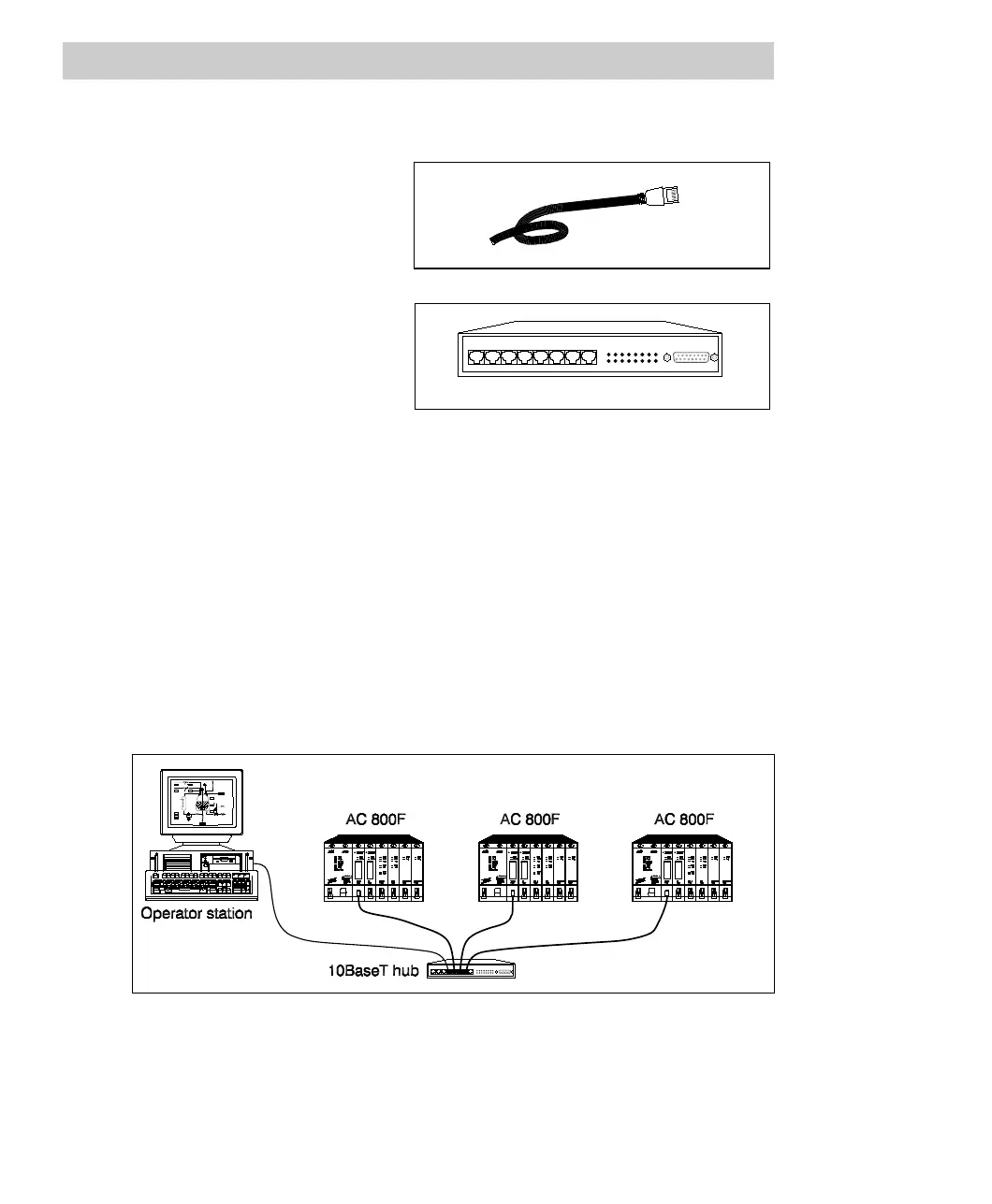

The following components are needed for cabling a 10BaseT segment with n nodes:
10BaseT cable, not crossed
10BaseT hub
Ready-made 10BaseT cables in different lengths (0.5 ... 20 m) and from different
vendors are available on the market. 10BaseT hubs are available with a different
number of ports and as rail-mounting units, 19“ rack-mounting units, or desktop units.
The cables and hubs are still under preparation. Please contact your ABB customer
service if you should need more information about 10BaseT cables, hubs or star
couplers.
Example:
The following components are needed for a network with four nodes:
4 10BaseT cable, not crossed
1 10BaseT hub (4-fold)
Fig. 4-19 Cabling a 10BaseT network with 4 nodes
