ABB AC 800F

11 Terminal Assignment
11-1

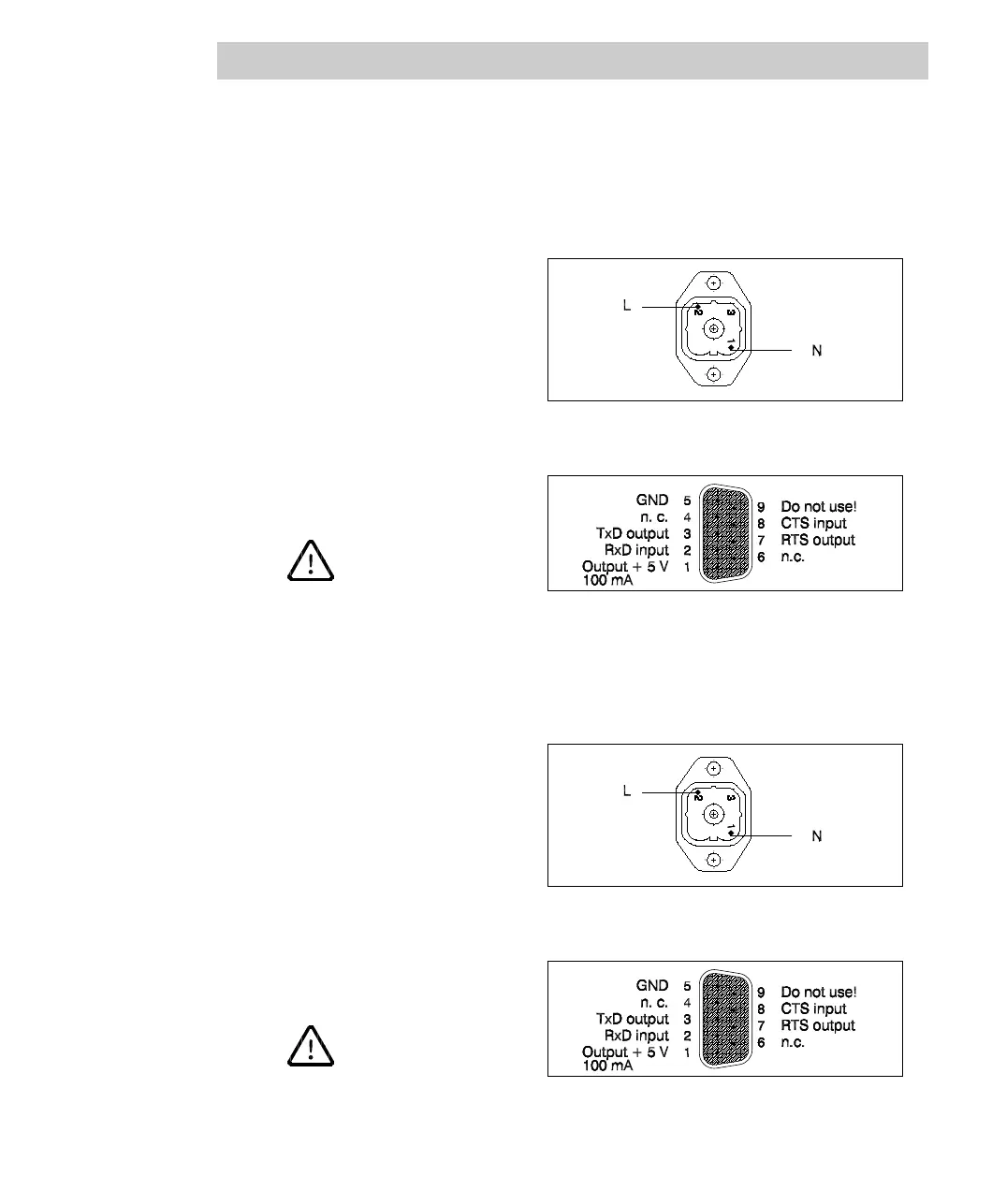

11 Terminal Assignment
11.1 Terminal assignment of the power supply modules
11.1.1 Terminal assignment of SA 801F
AC mains plug
Fig. 11-1 Terminal assignment mains plug, SA 801F
Diagnostic plug
Do not use pin 9!
Fig. 11-2 Terminal assignment diagnostic plug, SA 801F
11.1.2 Terminal assignment of SA 811F
AC mains plug
Fig. 11-3 Terminal assignment mains plug, SA 811F
Diagnostic plug
Do not use pin 9!
Fig. 11-4 Terminal assignment diagnostic plug, SA 811F
