ABB AC 800F

5 AC 800F Functional Description
5-3
Block diagram

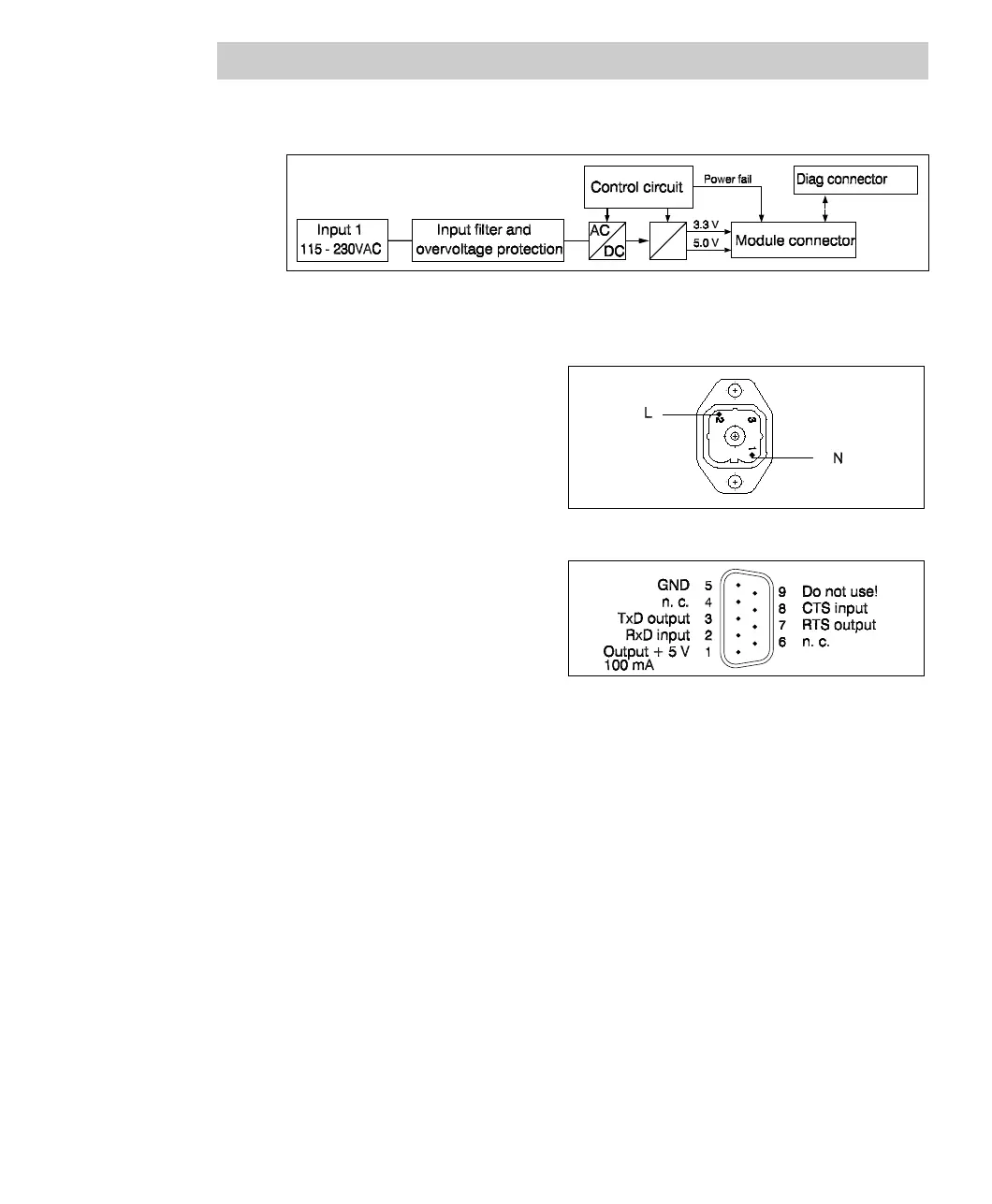

Fig. 5-1 Block diagram of power supply module SA 801F
Connector pin assignment
AC mains connector
Use one of the ready-made
TK 807F or TK 808F cables for
connecting a 115 - 230 V AC
supply voltage, see Section 4.1.5,
Cabling.
Fig. 5-2 Pin assignment of AC mains connector
Diagnostic connector
Use one of the ready-made
TK 890F or TK 891F cables for
connecting the diagnostic
interface, see Sections 4.1.5 and
5.4.
Fig. 5-3 Pin assignment of diagnostic connector
