ABB AC 800F

4 Cabling the AC 800F
4-35
4.2.9 Installing a 10BaseT (twisted pair) network
4.2.9.1 General
This section describes how to install a single 10BaseT segment.
A 10BaseT network requires that a 10BaseT module is present in slot E1 and/or slot
E2.
Maximum segment length 100 m
Maximum number of nodes per segment 2

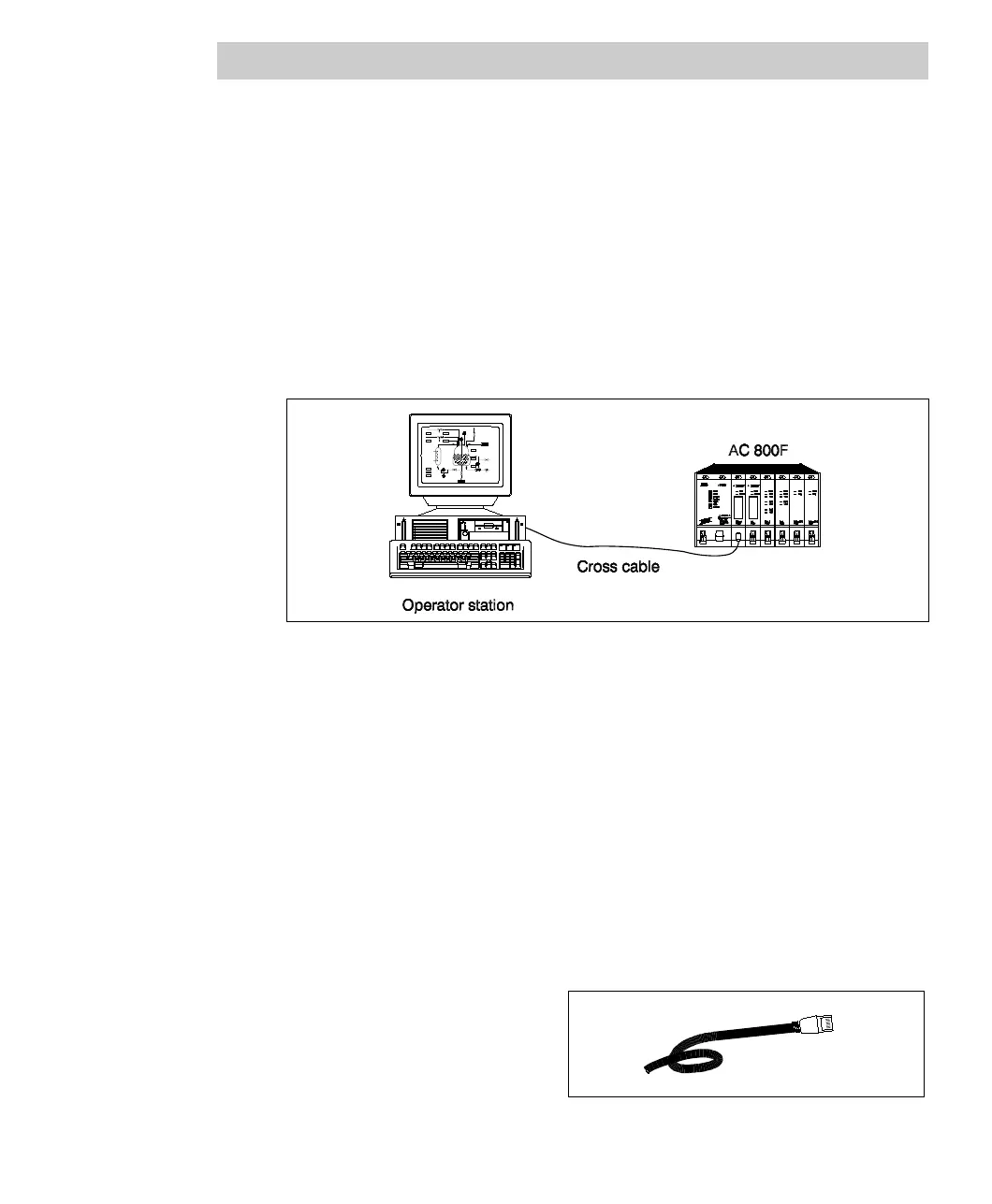

Fig. 4-18 Installing a 10BaseT network with 2 nodes
Applications:
• Installations within one building.
• Medium-size installations with small or medium numbers of nodes.
• Installations with little to medium EMI.
4.2.9.2 Cabling a 10BaseT segment
A single crossed twisted-pair cable (cross cable) is required for cabling a 10BaseT
segment with 2 nodes.
10BaseT cable
