ABB RELION Series User Manual

14
16
15
17
19
18
X110
SO1
SO2
20
22
21
23
24
X110
SO3
SO4
GUID-CBA9A48A-2549-455B-907D-8261E2259BF4 V1 EN

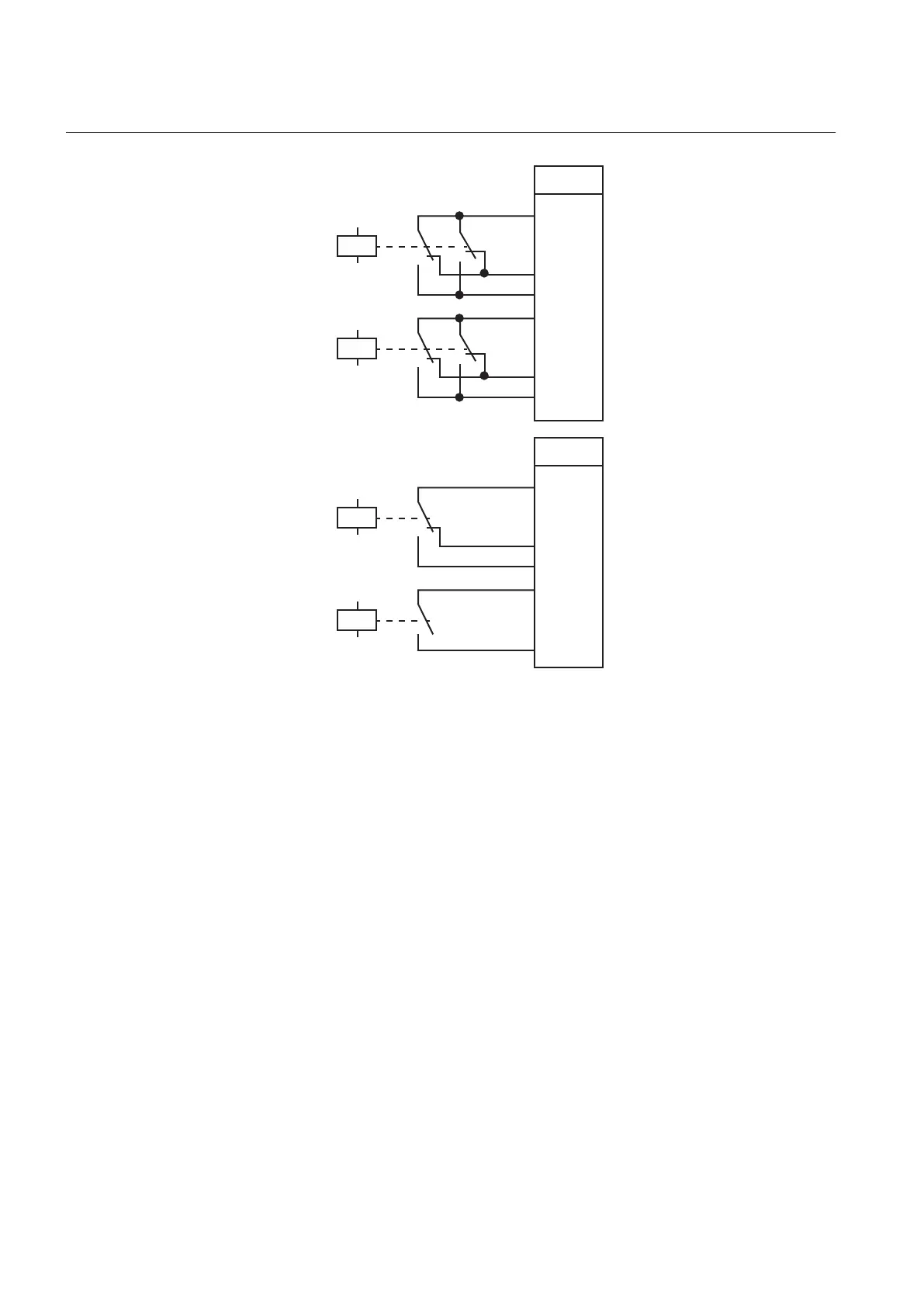

Figure 31: Signal output in BIO0005
3.11.2.4 Signal outputs SO1, SO2 and SO3 in BIO0006
The optional card BIO0006 provides the signal outputs SO1, SO2 and SO3. Signal
outputs SO1 and SO2 are dual, parallel form C contacts; SO3 is a single form C
contact.
Section 3 1MRS758755 A
Basic functions
86 REC615 and RER615
Technical Manual

ABB RELION Series Specifications

General

Product Series	RELION
Category	Control Unit
Analog Outputs	Up to 8
Product Type	Protection and Control IED
Communication Protocols	IEC 61850, Modbus, DNP3
Input Voltage	24-250 V DC / 110-230 V AC
Protection Functions	Overcurrent, Overvoltage, Undervoltage, Earth fault, Frequency
