The SDH Access Tester application
Acterna ANT-5 Page 75

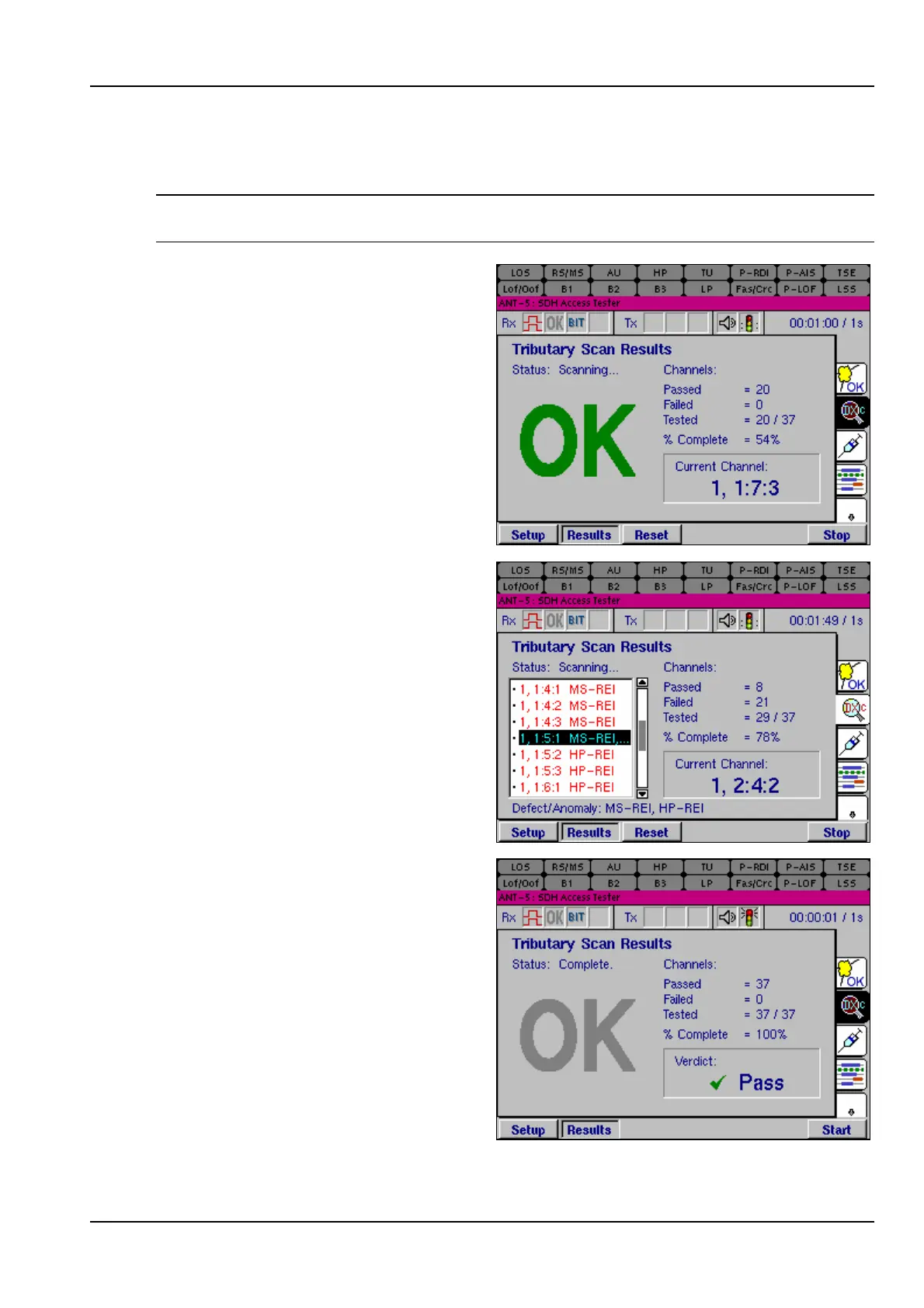

4.16 VC12 Tributary Scanning Results
Note: Select Tributary Scan from the Measurement Selection page. See Section
4.8 to configure the required setup.
Once the Start button is pressed, the
screen will automatically change to
the Tributary Scan results page to
display the test.
Tributaries that have failed the test
are listed in order of severity. Users
can scroll through the list to locate
specific channels. (Multiple failures
are indicated below the list). In this
example MS-REI and HP-REI failures
are present in the 1,1:5:1 tributary.
A verdict of the overall result will be
displayed on completion of the test.
