Appendix F - Remote Access
Page 150 Acterna ANT-5
Note: A password is not mandatory since the password facility of Windows Dial-up
Networking is not used by ANT-5.
12. Refer to section 5.4.1, Software Installation and operation on using the GUI
faceplate.
14.1.3 Setting up a PC using Windows NT
The following is required and assumed to be working:
• The Remote Access Service (Control Panel>Network>Services).
• TCP/IP protocol (Control Panel>Network>Protocols).
• If the PC is not networked install the MS Loopback Adapter (Control Panel >
Network>Adapters).
• A correctly installed and configured modem.
• Phone number of the remote ANT-5 (including country/area codes).

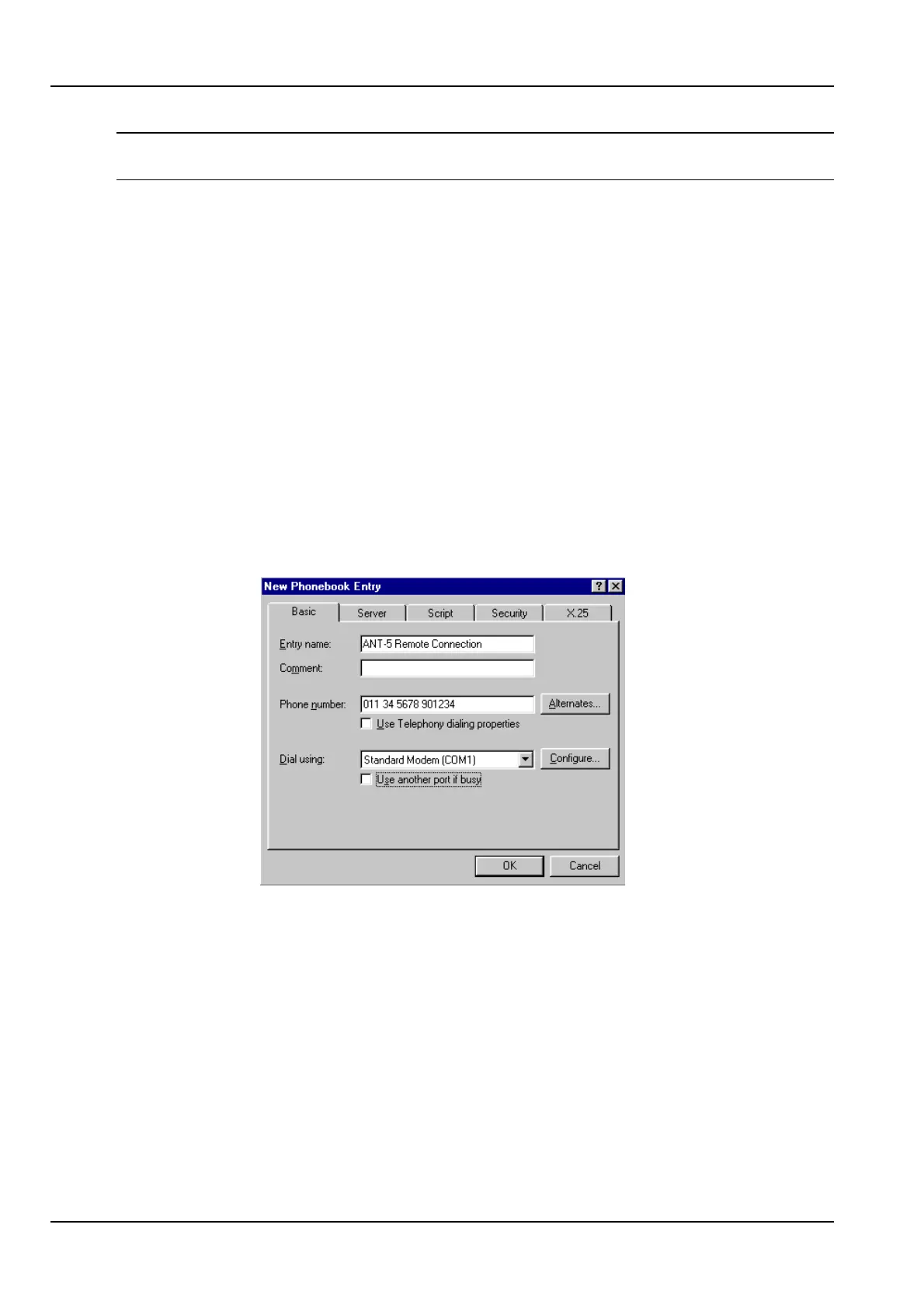

1. From Start > Programs >Accessories > Dial-Up Networking click on New. Type
in a name for the connection and the phone number of the remote ANT-5. (It is
advisable to uncheck Use another port if busy).
