Dimensions
AdeptModules Instruction Handbook, Volume 1: Adept MV Controller Interface, Rev. A 111
6.1 Dimensions
Adept Linear Modules Dimensions
For the dimensions of the Linear Modules refer to the AdeptModules Instruction Handbook,
Volume 2: Mechanical Assembly manual
Adept MV-5 and MV-10 Controllers Dimensions

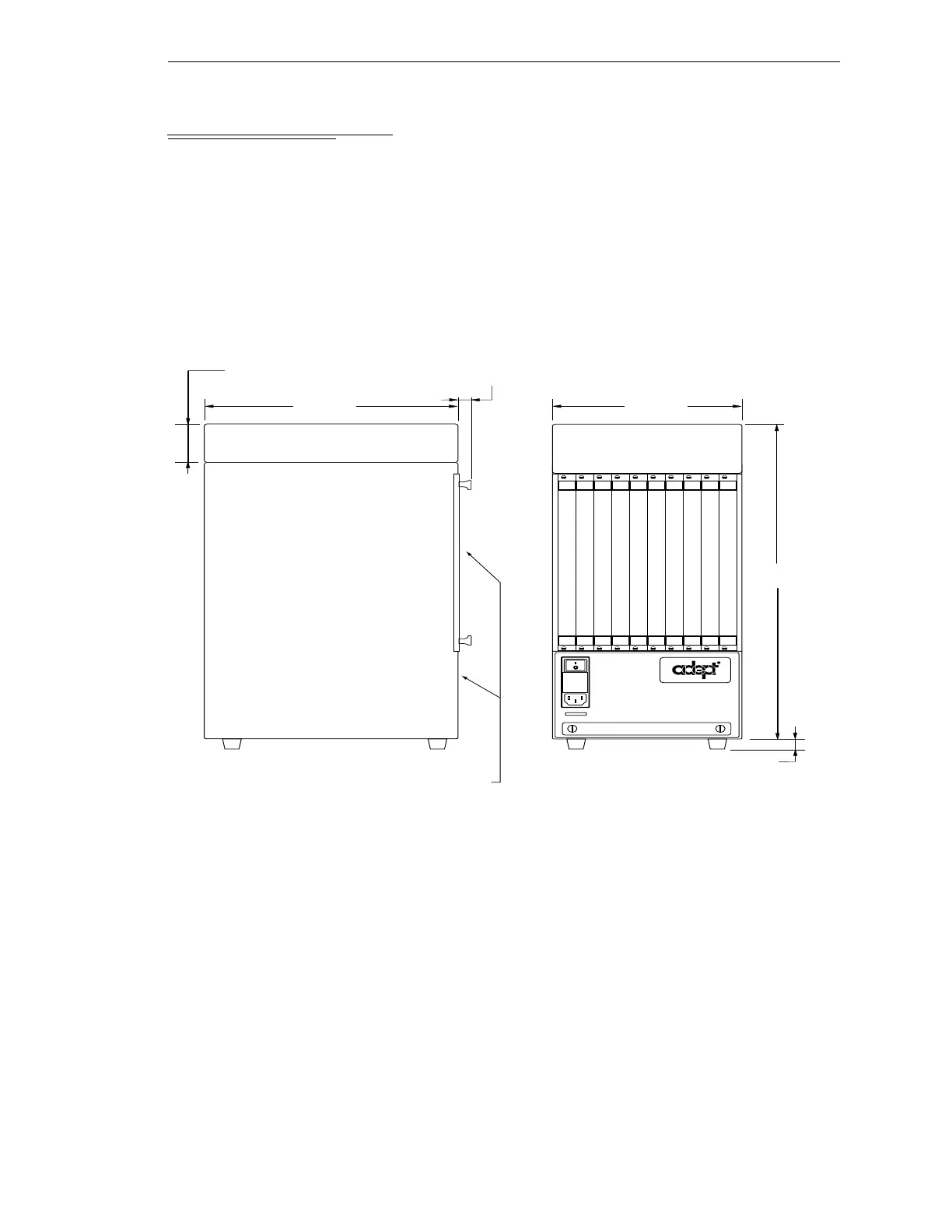

Figure 6-1. Adept MV-5 and MV-10 Dimensions
®
477.7 mm
(18.8 in.)
15.0 mm
(0.6 in.)
215.9 mm
(8.5 in.)
16.0 mm
(0.6 in.)
286.7 mm
(11.3 in.)
Note 2: Allow 25 mm (1 in.) minimum at
top and bottom for air intake and exhaust.
Note 1: Allow 75 mm (3 in.) minimum at front
for power cord and signal cable clearance.
57.4 mm
(2.3 in.)
