adept technology MV - MCP Cradle Dimensions; Figure 6-7 MCP Cradle Dimensions

Dimensions
AdeptModules Instruction Handbook, Volume 1: Adept MV Controller Interface, Rev. A 117
MCP Cradle Dimensions

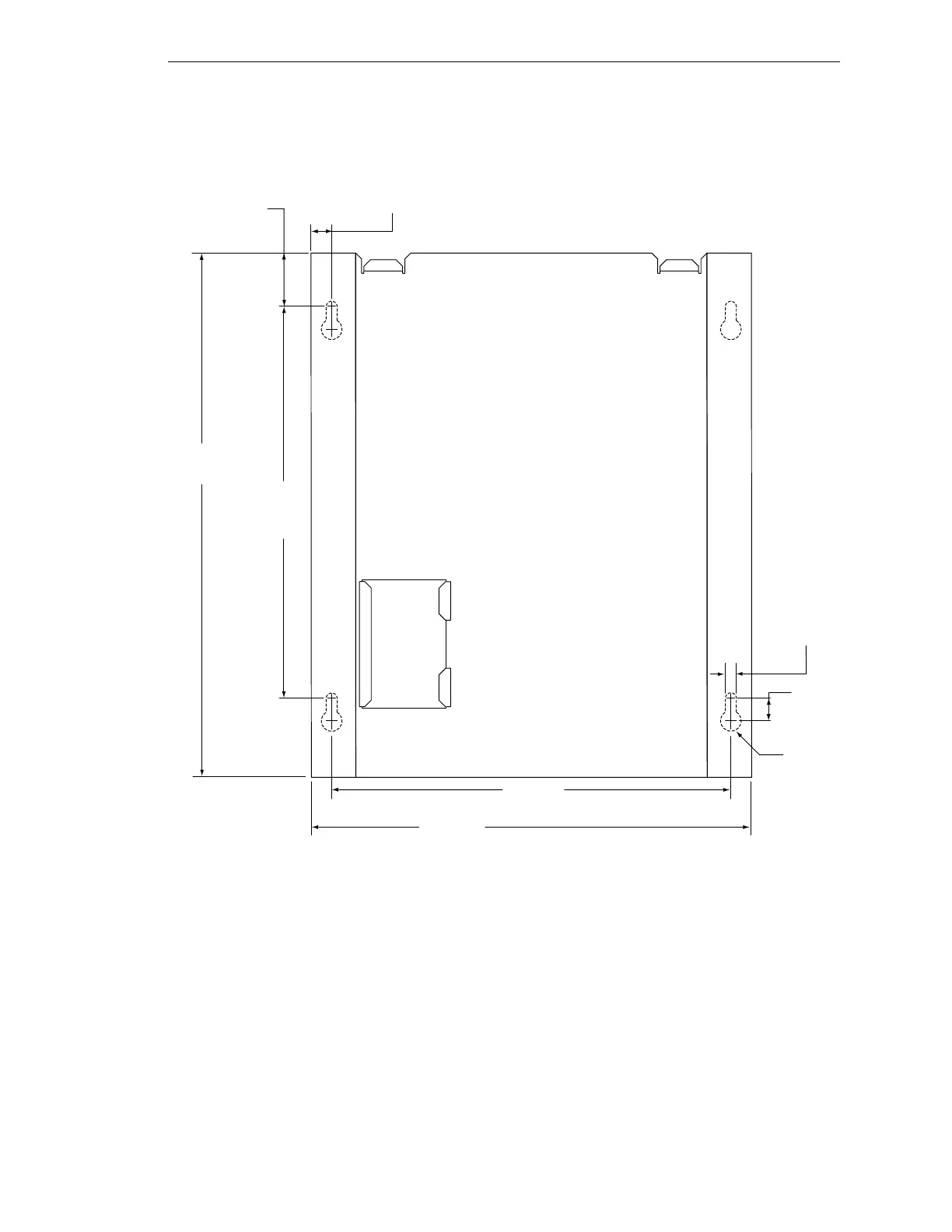

Figure 6-7. MCP Cradle Dimensions
10.2 mm
(0.40 in.)
(4 X)
28.7 mm
(1.13 in.)
(2 X)
203.2 mm
(8.0 in.)
(2 X)
271.5 mm
(10.69 in.)
4.8 mm
(0.19 in.)
(4 X)
221 mm
(8.70 in.)
201 mm
(7.91 in.)
9.7 mm
(0.38 in.)
(4 X)
ø 9.7 mm
(ø 0.38 in.)
(4 X)
