Chapter 6 - Technical Specification
114 AdeptModules Instruction Handbook, Volume 1: Adept MV Controller Interface, Rev. A
Dimensions of the Signal Interface Box

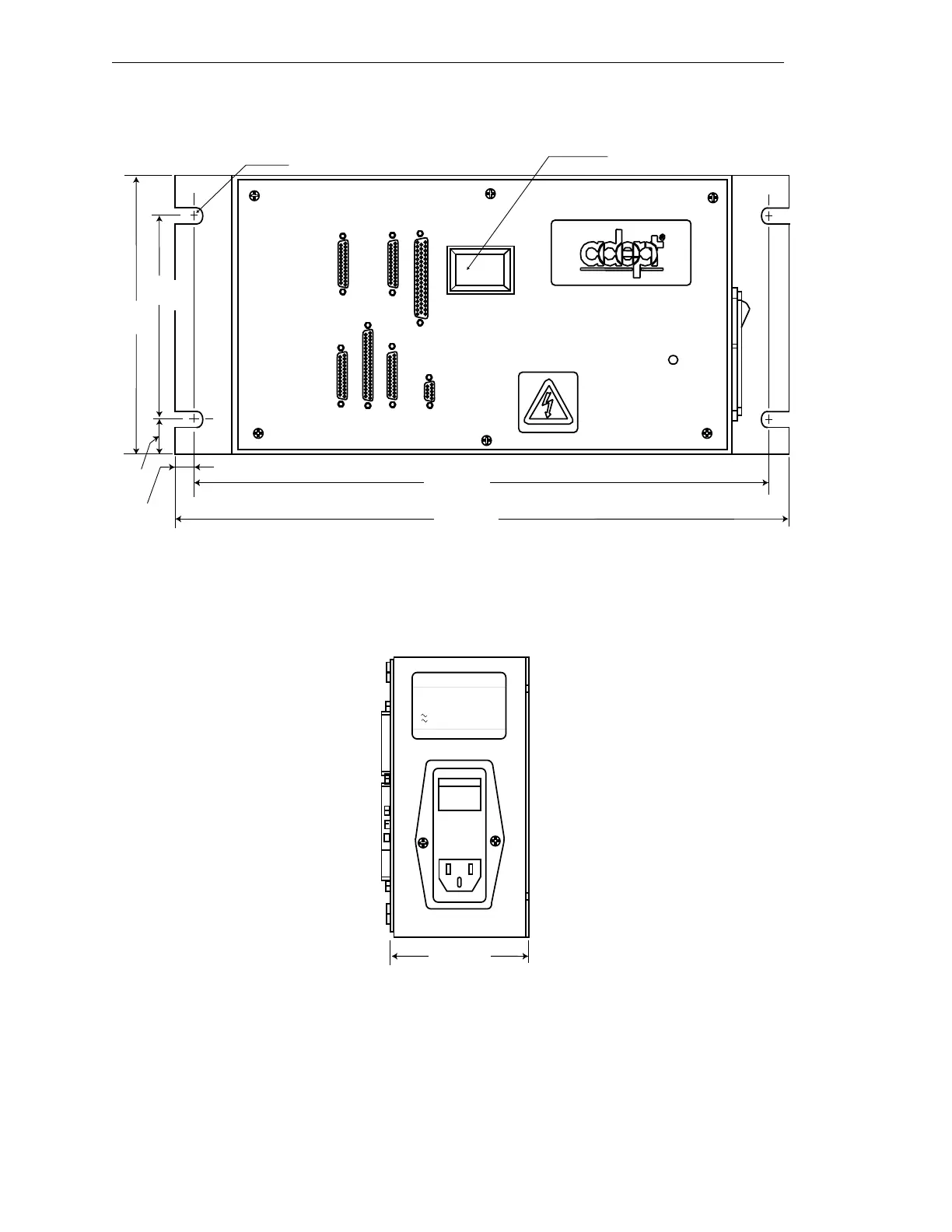

Figure 6-4. AdeptModules Signal Interface Box
POWER
USER OUTPUT/
BRAKE REL.
AXIS 4AXIS 3
AXIS 2
AXIS 1
ARM
SIGNAL
STATUS LEDs
(15.00 in.)
(14.00 in.)
(7.00 in.)
(5.00 in.)
(0.50 in.)
4x ø .280
Z-THETA
Front View
Side View
Disconnect and
Lockout Main Power
Before Servicing Equipment
Adept Technology, inc .
San Jose Ca.
(3.36 in.)
Model: AdeptModules Interface
Part No. 30400-20000
Serial No. 400-00144
Voltage Current Frequency
110V 2A 50/60 Hz
220V 1A
Made in U.S.A.
101.60 mm
381.00 mm
12.70 mm
(1.00 in.)
25.40 mm
127.0 mm
177.8 mm
85.34 mm
