Installation of the Adept MV Controller and the Adept PA-4 Power Chassis
AdeptModules Instruction Handbook, Volume 1: Adept MV Controller Interface, Rev. A 37

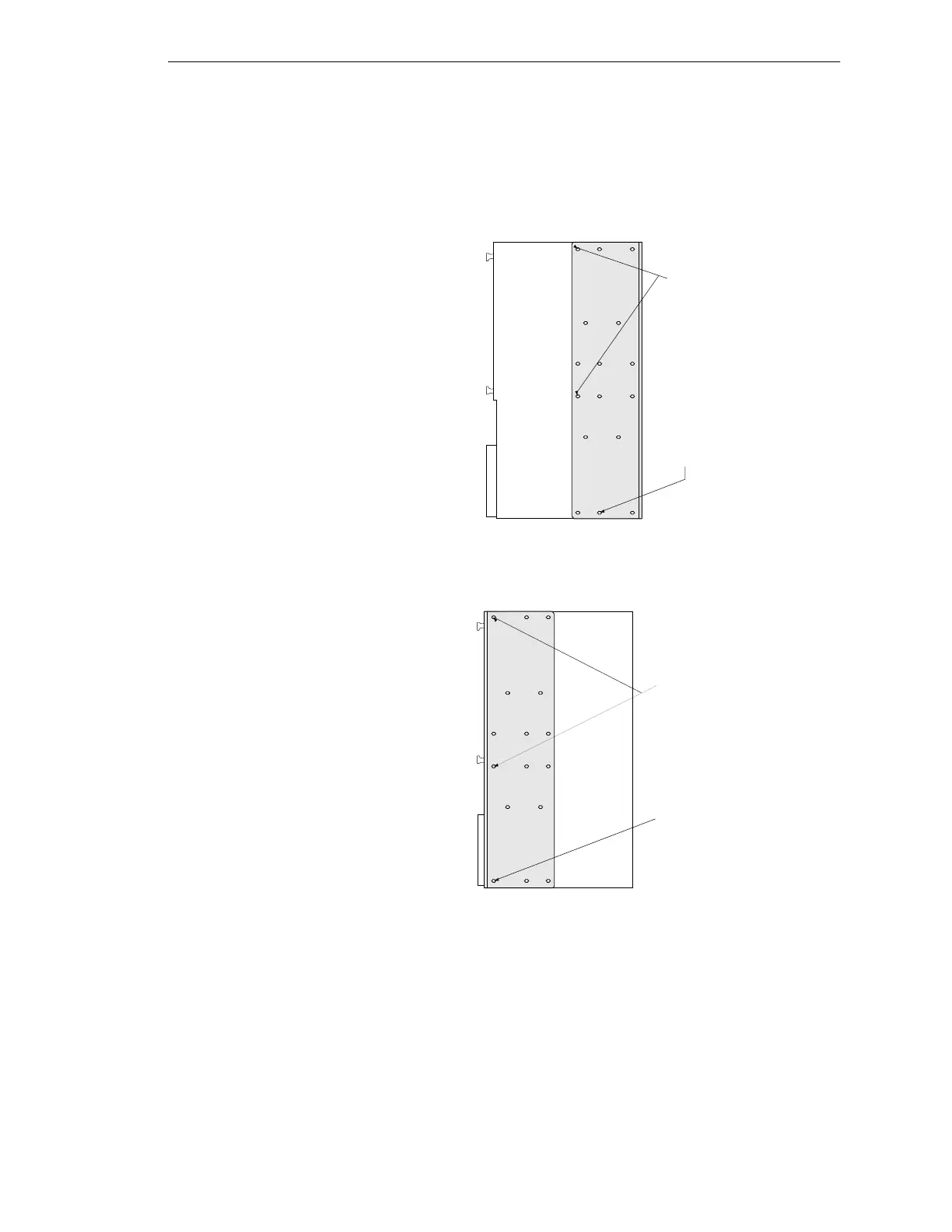

Figure 2-3. Installing Mounting Brackets on an Adept MV Controller
M4 x 25mm
pan-head screw
(two places)
M4 x 10mm
pan-head
screw
M4 x 25mm
pan-head screws
(two places
each Rack Mount)
Rack Mount – Flush
Panel Mount
M4 x 10mm
pan-head screw
(one place each
Rack Mount)
To Install Mounting Brackets
on Adept M-5/10/19 controller:
• Remove (and discard) three
existing countersink screws
from each side of the chassis at
locations shown in drawing.
• Place bracket in desired position
and secure with indicated M4
screws and washers from
accessories kit.
• Repeat process for other side
of controller. If the controller
is joined to an Adept PA-4 Power
Chassis, the position of the screws
is different than on the side of the
contoller.
(See drawing for power chassis.)
