Connecting to AC Power
AdeptModules Instruction Handbook, Volume 1: Adept MV Controller Interface, Rev. A 59

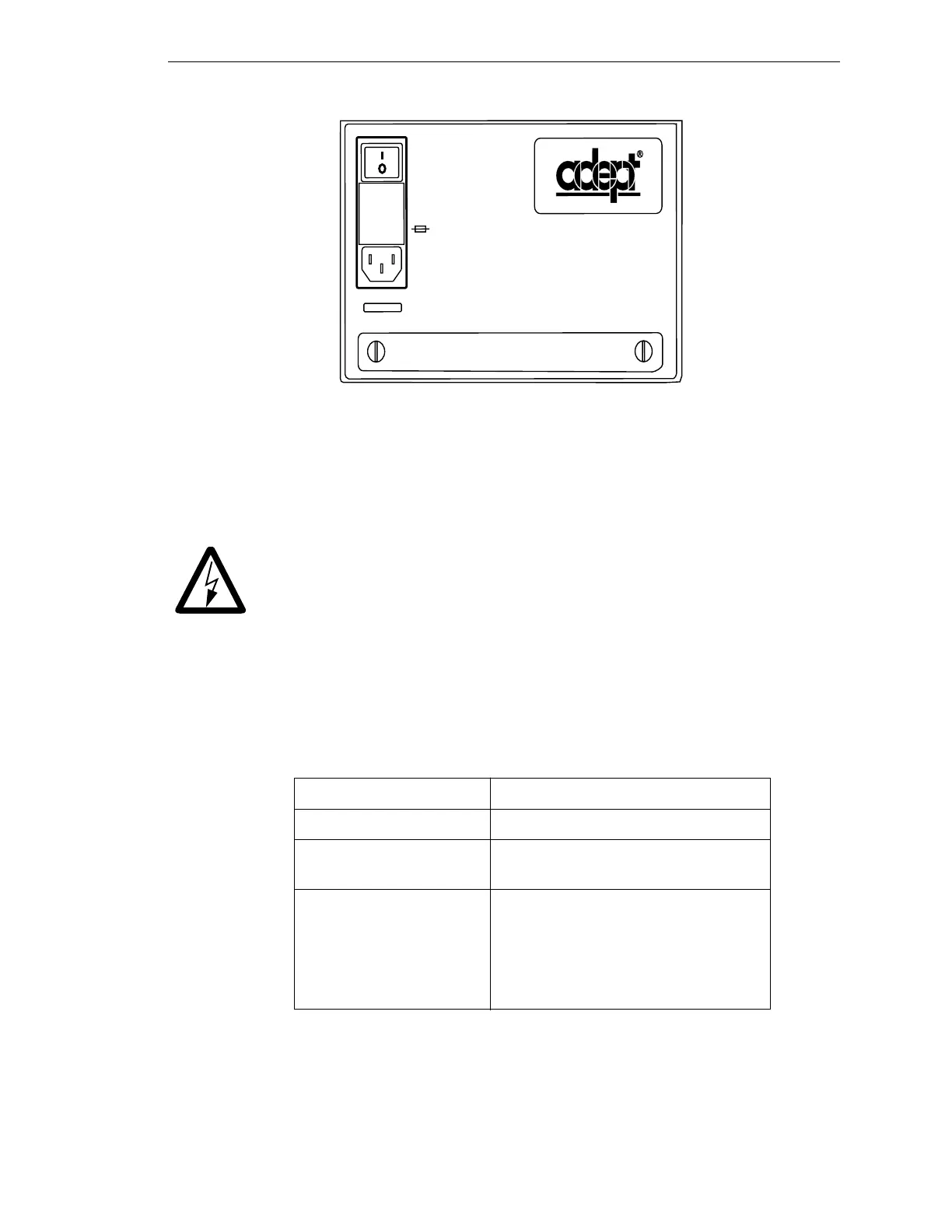

Figure 2-18. Adept MV Controller Power Entry Module
Connecting AC Power Cord
The AC power cord is included in the accessory kit. The controller end of the power cord
is fitted with an IEC 320 connector. The user end of the cord is unterminated.
WARNING: Electrical hazard!
The installation of the power cord must be done by a skilled person. The
power supply can injure or kill the person who installs the cords or an
incorrect installation can injure or kill anybody who touches the
equipment in the AdeptModules workcell.
Connect each conductor of the power cord securely to the AC power source, using the
color code shown in Table 2-9. Provide a suitable plug or other facility connection in
accordance with all applicable regional and national codes. (See section 2.17 on page 56
for important information on system grounding.)
Table 2-9. Adept MV Controller Power Cord Specifications
Cord length 3 meters ±0.1 m (9 ft. 10 in. ±4 in.)
Cord rating 10 amps
Number and size of
conductors
3 x 1.00 mm
2
Color Code:
line
neutral
ground
brown
blue
green/yellow
®

WARNING:

FOR CONTINUED PROTECTION
AGAINST RISK OF FIRE, 
REPLACE ONLY WITH SAME 
TYPE AND RATING OF FUSE.
USE ONLY WITH 
250V FUSES
~100-240V
50/60HZ
5AT
