Adept PA-4 Power Chassis Dimensions

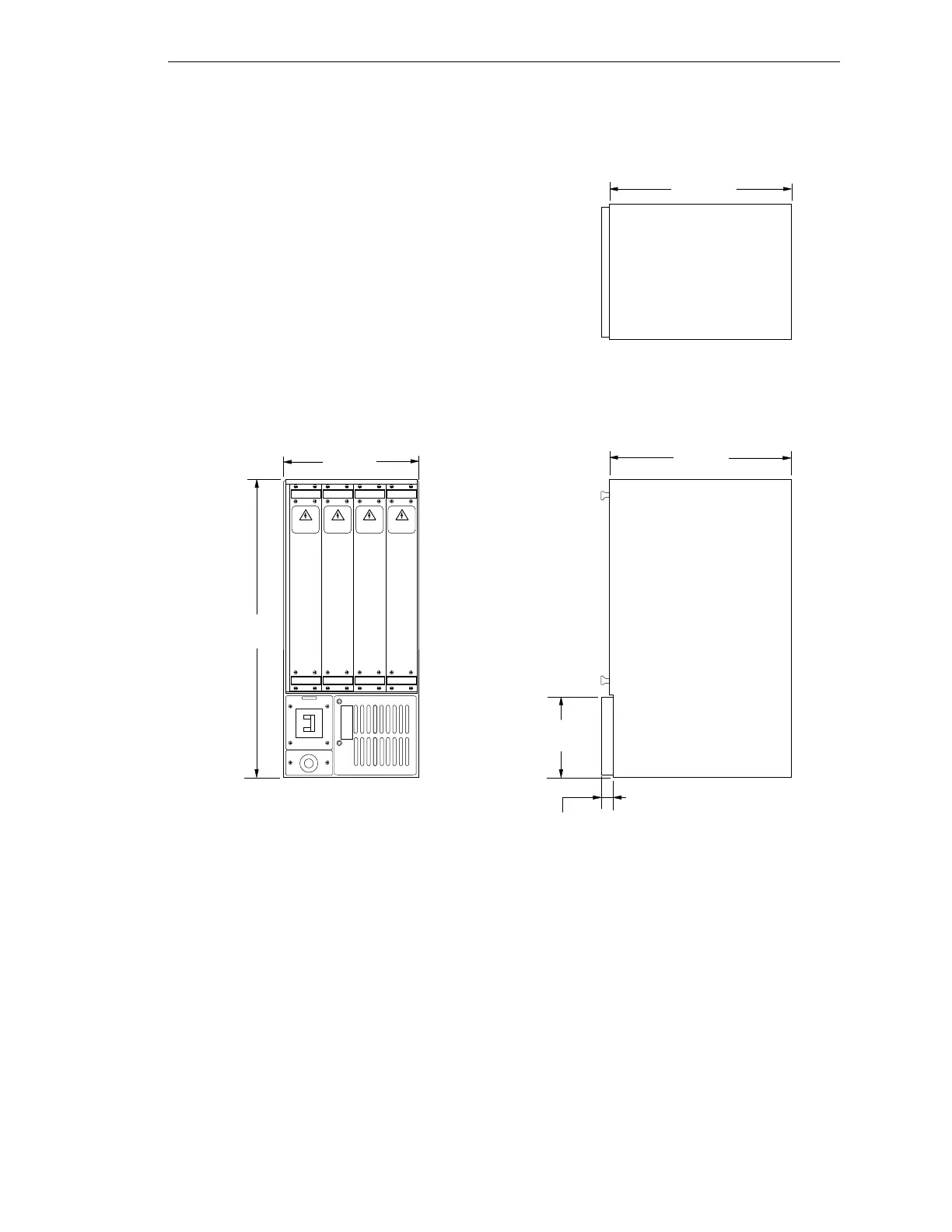

Figure 6-3. Adept PA-4 Power Chassis Dimensions
216 mm
(8.5 in.)
290 mm
(11.4 in.)
479 mm
(18.9 in.)
Front View
Side View
Top View
136 mm
(5.4 in.)
18 mm
(0.7 in.)
adept 
technology, inc.
290 mm
(11.4 in.)
