[Trace] Soft Key
The [Trace] Soft Key accesses the [Capture] Soft Key and [Accumulate] Soft Key as shown in
Fig. 7-22.
Trace Color
Trace types being displayed on the graph are listed in the upper right corner of the graph field.
The traces are color-coded to identify trace types. The in Fig. 7-22 shows Trace A (Green) and
Trace B (Yellow).
● Live and Averaged Trace A are Green.
● Live and Averaged Trace B are Yellow.
● Captured Trace A is Blue.
● Captured Trace B is Purple.

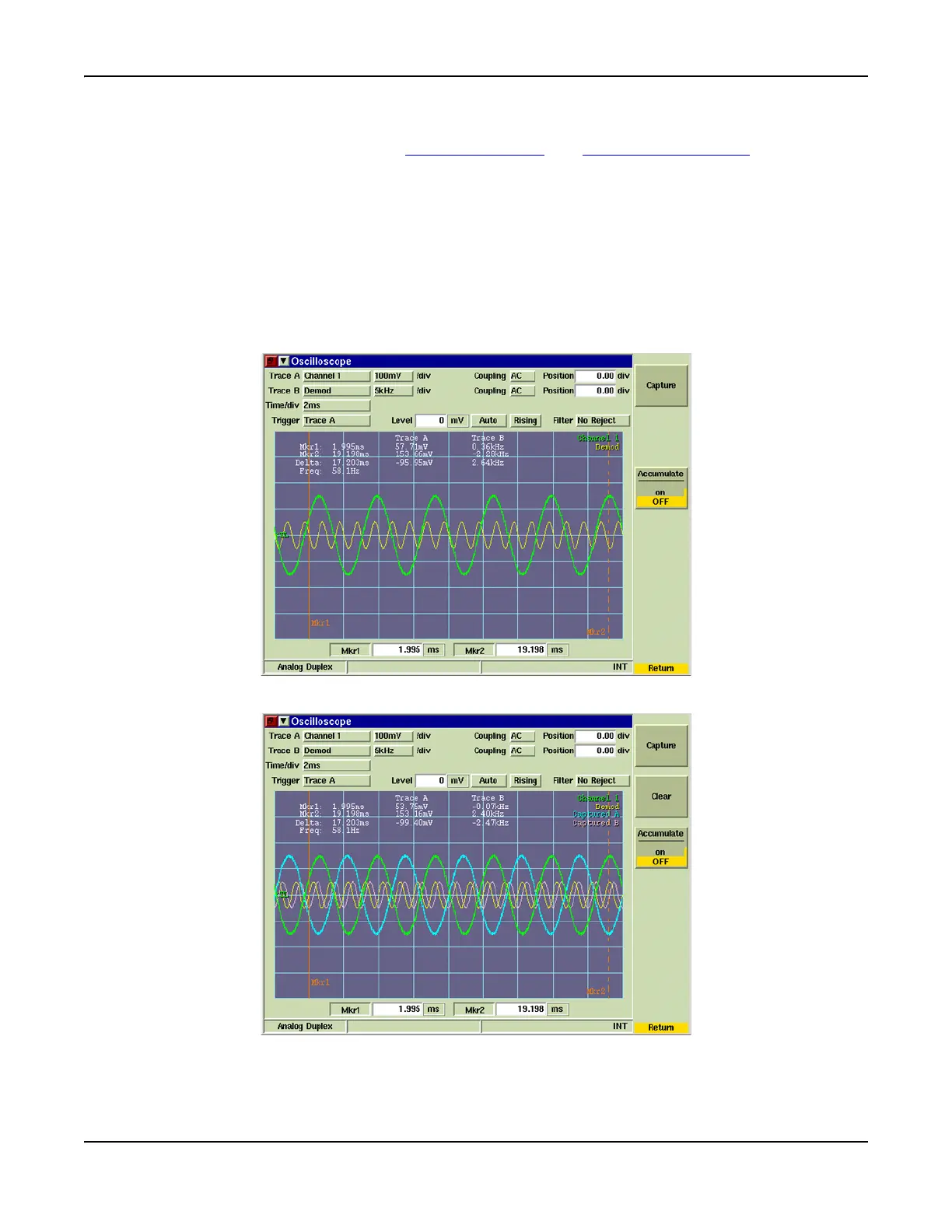

Fig. 7-22 Oscilloscope Trace Soft Keys
Fig. 7-23 Oscilloscope Captured Traces
