Agilent Technologies 4288A

232 Appendix B
Information for Replacing 4278A with 4288A
Example of Replacing Major Functions (comparison of programs)
Example of Replacing Major Functions (comparison of
programs)
Comparator
Sequential mode (absolute mode)

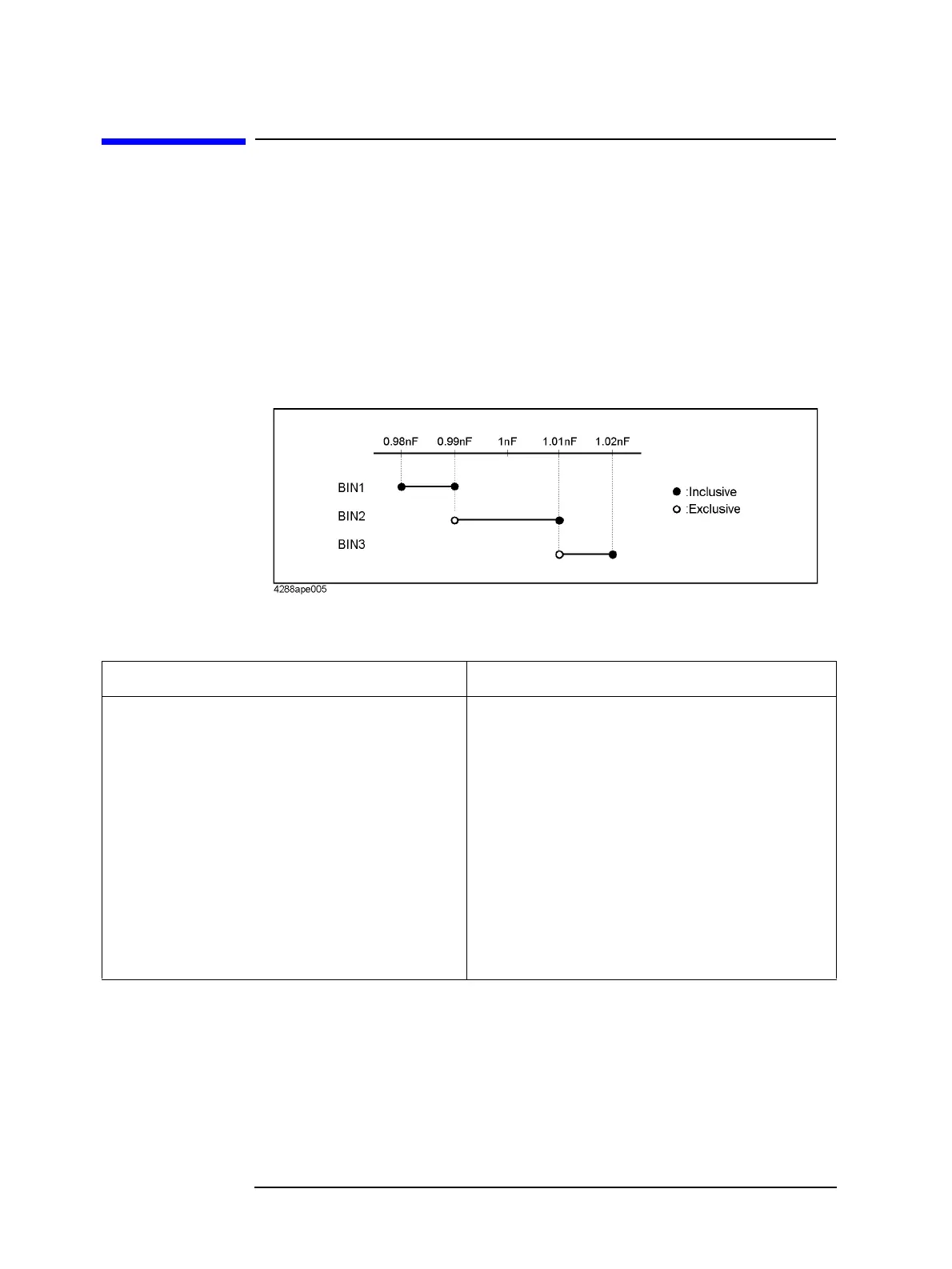

Table B-18 compares the programs used by the 4278A and 4288A to set the limit ranges.
These ranges are the Cp limit range as shown in the following figure and the D limit range
from 0 to 0.1 in the sequential mode (absolute mode).
Table B-18 Comparison of programs used to set limit ranges in sequential mode
4278A 4288A
10 ASSIGN @Agt4278a TO 717
20 !
30 OUTPUT @Agt4278a;"MPAR1"
40 OUTPUT @Agt4278a;"LPAR1"
50 !
60 OUTPUT @Agt4278a;"CLIM"
70 OUTPUT @Agt4278a;"LMOD3"
80 OUTPUT @Agt4278a;"BLIM=0.98E-9,0.99E-9,1.01E-9,1.02E-9"
90 !
100 !
110 !
120 !
130 !
140 !
150 !
160 !
170 OUTPUT @Agt4278a;"SLIM=0,0.1"
180 !
190 !
200 END
10 ASSIGN @Agt4288a TO 717
20 !
30 OUTPUT @Agt4288a;":CALC1:FORM CP"
40 OUTPUT @Agt4288a;":CALC2:FORM D"
50 !
60 !
70 OUTPUT @Agt4288a;":CALC:COMP:MODE ABS"
80 OUTPUT @Agt4288a;":CALC:COMP:PRIM:BIN1 0.98E-9,0.99E-9"
90 OUTPUT @Agt4288a;":CALC:COMP:PRIM:BIN1:STAT ON"
100 OUTPUT @Agt4288a;":CALC:COMP:PRIM:BIN2 0.99E-9,1.01E-9"
110 OUTPUT @Agt4288a;":CALC:COMP:PRIM:BIN2:STAT ON"
120 OUTPUT @Agt4288a;":CALC:COMP:PRIM:BIN3 1.01E-9,1.02E-9"
130 OUTPUT @Agt4288a;":CALC:COMP:PRIM:BIN3:STAT ON"
140 FOR I=4 TO 9
150 OUTPUT @Agt4288a;":CALC:COMP:PRIM:BIN"&VAL$ (I)&":STA
TOFF"
160 NEXT I
170 OUTPUT @Agt4288a;":CALC:COMP:SEC:LIM 0,0.1"
180 OUTPUT @Agt4288a;":CALC:COMP:SEC:STAT ON"
190 !
200 END
