Status Reporting System
Status Register Structure
C. Status Reporting System
Status Register Structure
The status reporting system has the hierarchical structure shown in Figure C-3. The status
byte register is a summary of registers in the lower level. This section describes the status
registers in each hierarchy. Each bit of the status register is described in Table C-1 through
Table C-3.

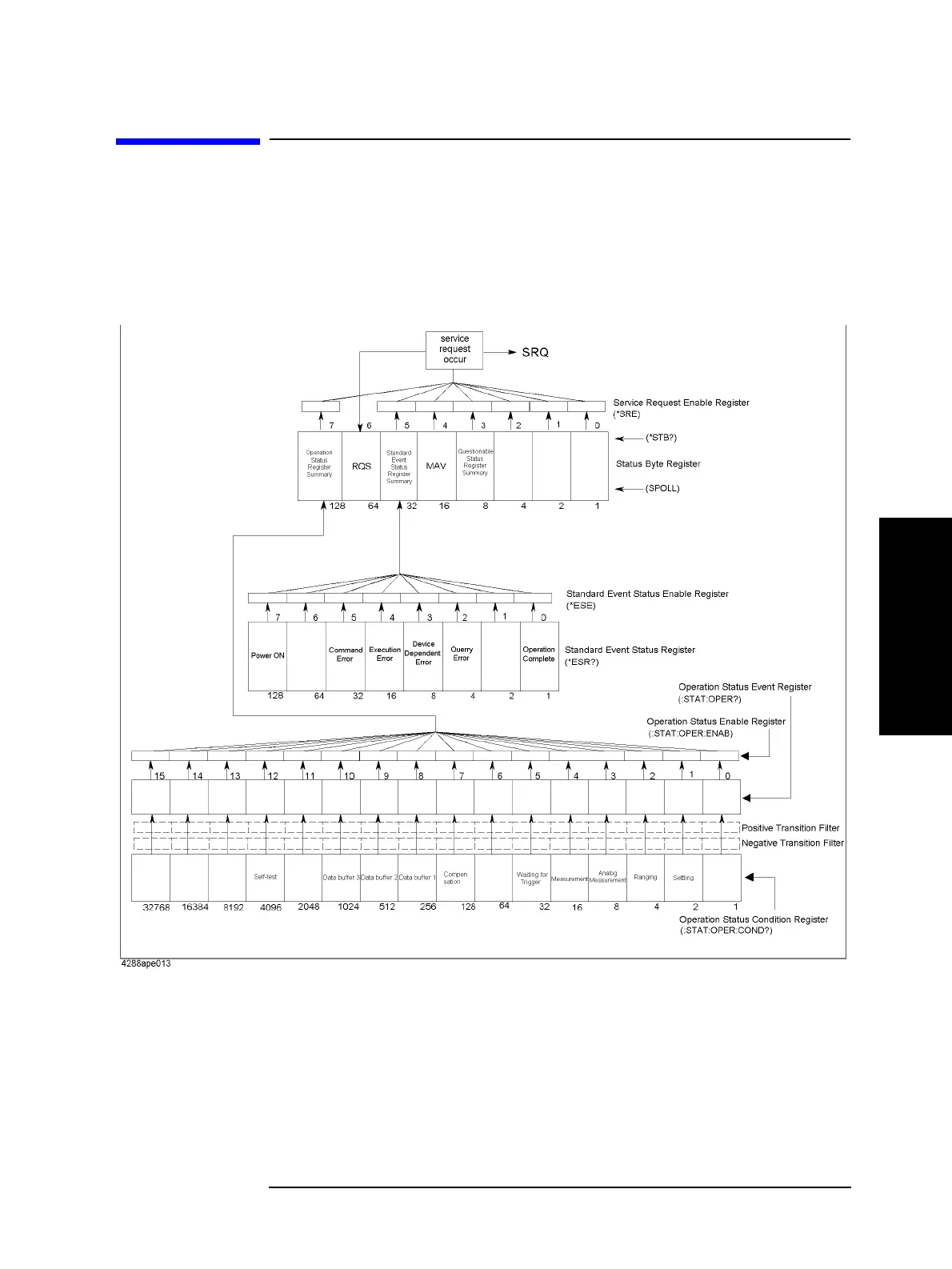

Figure C-3 Status Register Structure
