Released: April 2004 6850 Series Gas Chromatograph Service Procedures 258
Caution
In installing the new transformer, be careful
not to accidentally break its insulation and/or
damage its windings against interfering parts
of the unit
5. Carefully install the new transformer
(G2630-60970) over the M10 screw posi-
tioned such that both cables are toward back
of the unit with the long cable to the left
and the short cable straight towards the
back of the unit. See Figure 1-5.

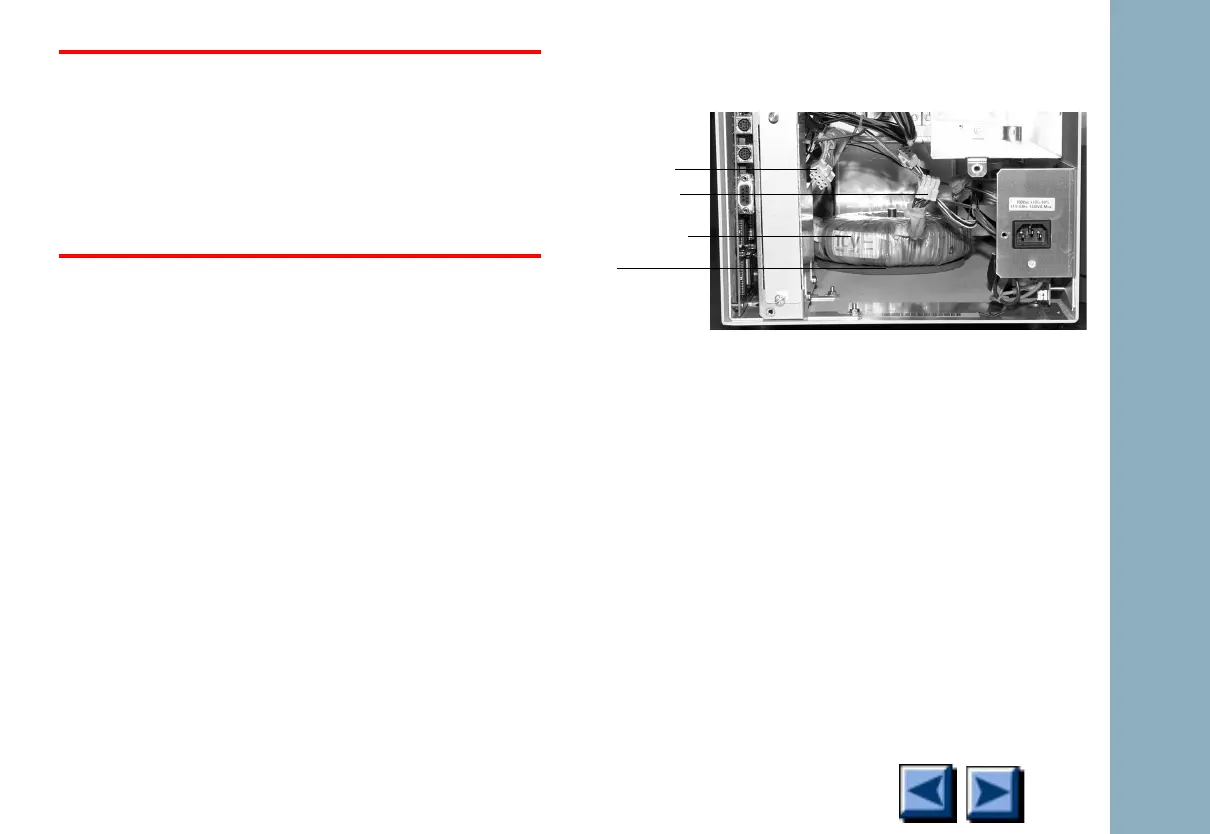

Figure 1-5. New pad and transformer
installed
6. Secure the transformer using the new M10
cone washer (1460-2403) with its cone side
up, then followed by one M10 nut (0535-
0189). Tighten the nut firmly using the
17-mm socket such that the transformer
cannot rotate.
Long cable
Short cable
Transformer
Pad
