Lesson 7 – Executing the DAC Distortion Test

276

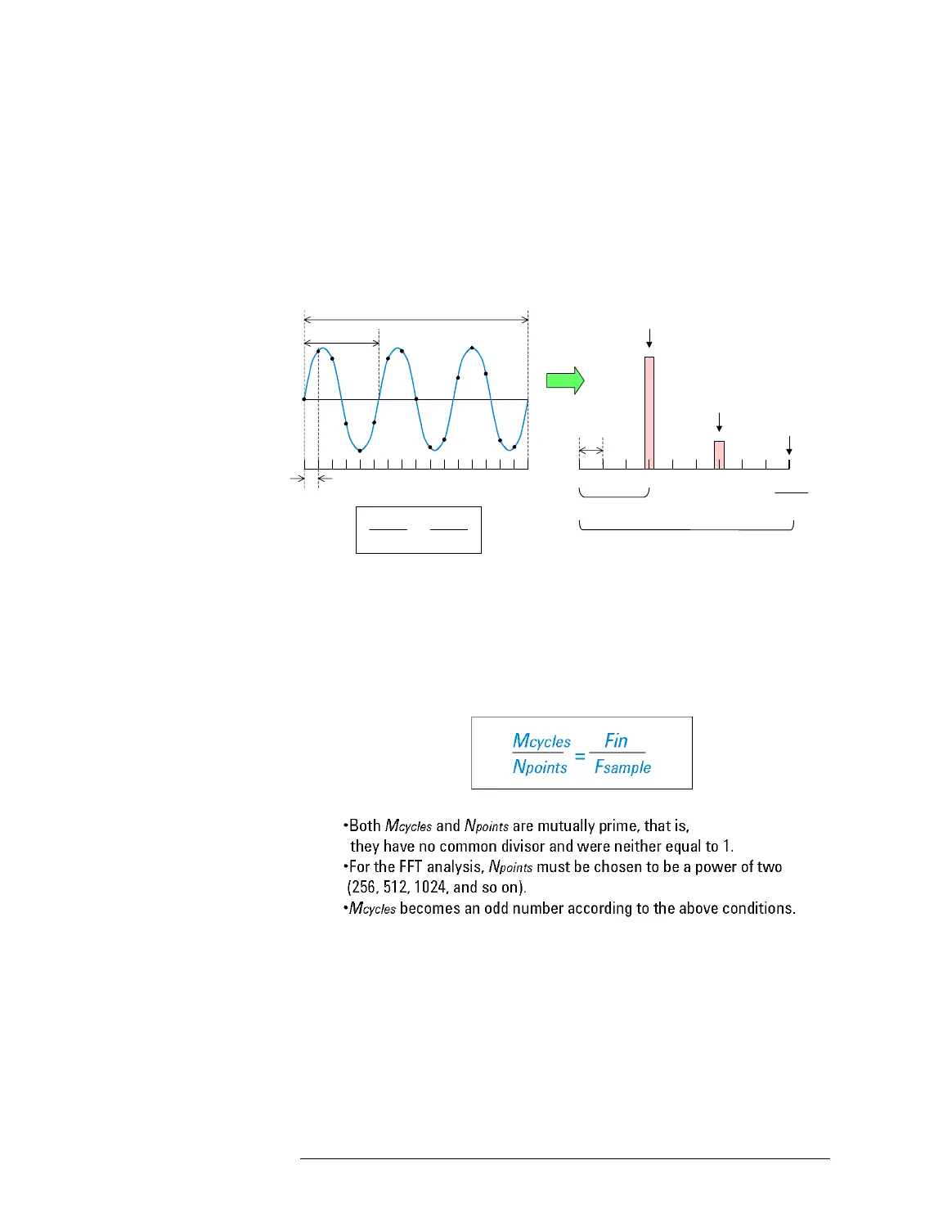

Coherent Sampling

In order to obtain a pure spectrum, coherent sampling has to be

established.

Sampling Parameters and FFT

When setting up coherent sampling, the following condition must

be met.

Condition for Coherent Sampling

Unit Test Period (UTP)

Mcycles = 3

points = 16

1/F

1/Fsample

Nyquist

Frequency

1/UTP

Fsample

Fundamental

Frequency

2nd

Harmonic

Fin

Mcycles = 3

Npoints / 2 = 8

sample

Fin

Mcycles

Npoints

FFT

Coherent Sampling

Default Chapter3
