Lesson 4 – Defining the Signal Routing

216

4-3 Setting up the DAC Routing

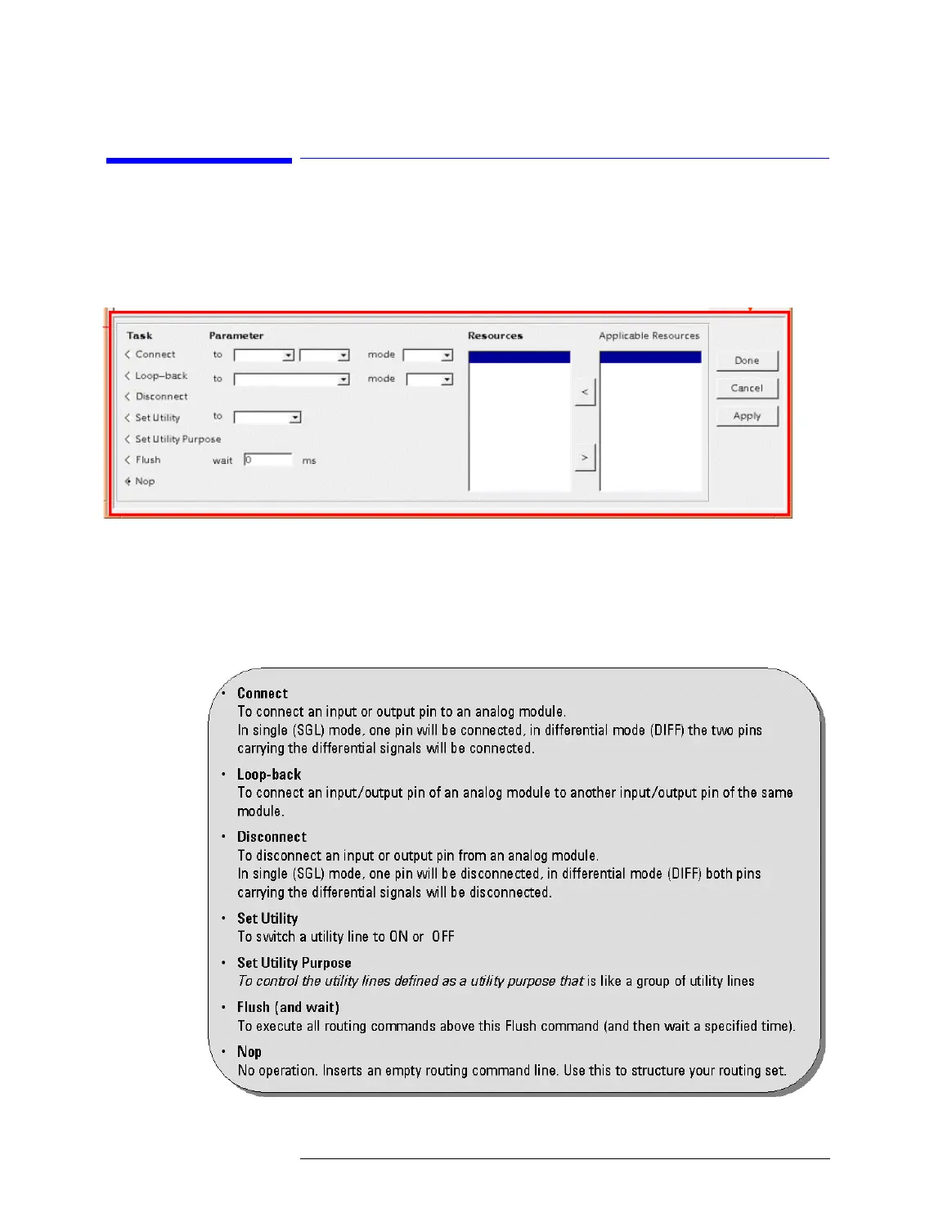

The following figure shows the routing command construction area

of the Routing Setup Tool. This area gets displayed, when you click

the Edit button in the Routing Setup Tool window.

Routing Command Construction Area

A routing command consists of the routing task and the

parameters which define the pins on which the routing task will

be applied.

The following routing tasks can be chosen.

Available Routing Tasks

Default Chapter3
