Lesson 5 – Waveform Generation with the Mixed-Signal Tool

236

5-5 Generating Waveforms

This chapter deals with the waveform generation functions

provided by the waveform setup section of the Mixed-Signal Tool.

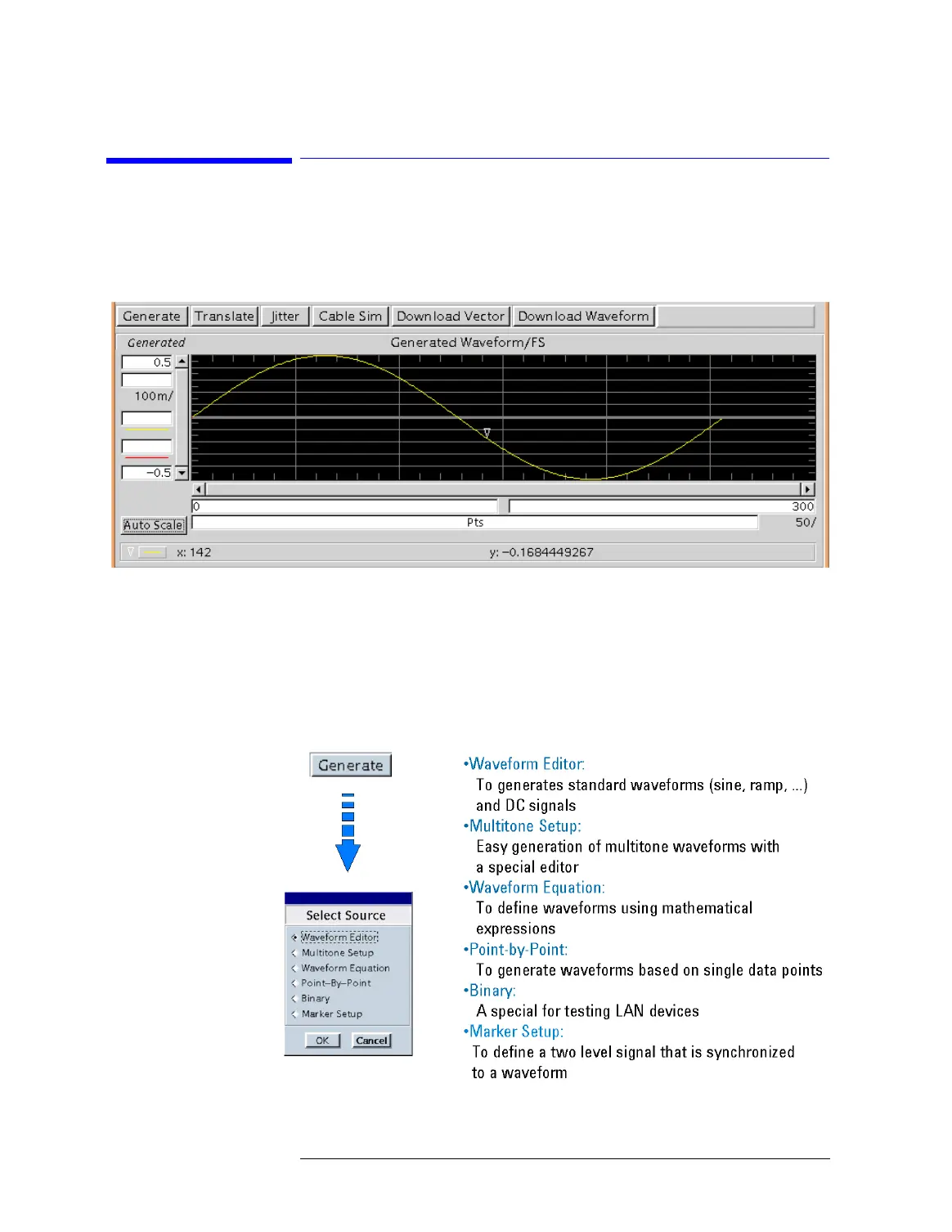

Waveform Setup Section with Menu Bar

To generate a waveform:

1 Click GENERATE.

2 Choose the tool you wish to use.

Waveform Generation Tool Selection
