Lesson 5 – Waveform Generation with the Mixed-Signal Tool
235
5 Click OK.
6 Enter the file name and click OK.
How to Restore Saved Waveforms
To load a saved waveform into one of the display areas:
1 In the general section menu, click the FILE I/O button.
2 Choose OPEN WAVEFORM.

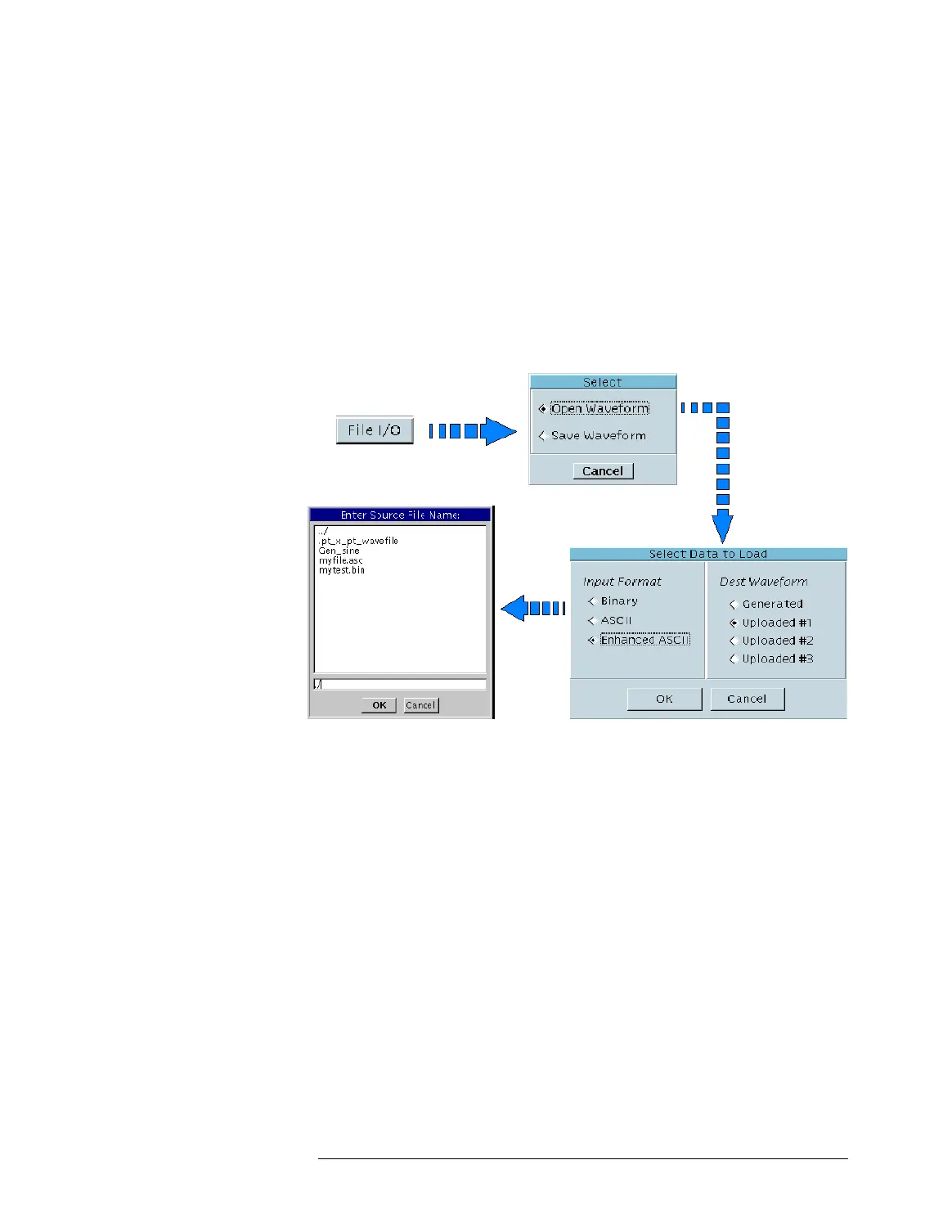

Loading a Waveform from a File
3
Choose the waveform display area where the waveform shall be
displayed.
4 Choose the format in which the waveform has been saved:
– Binary data is stored in float32 format.
– ASCII data is stored as decimal floating point numbers.
– Enhanced ASCII includes not only the waveform, but also
context information, such as scaling, title, source, etc.
5 Click OK.
6 Choose the file from the list and click OK.
