Agilent Technologies 93000 SOC Series - Pin Connections with an Analog Modules Multiplexer

Lesson 1 – Analog Modules
99
1-6 Pin Connections with an Analog
Module’s Multiplexer
All the analog modules have a multiplexer to make various
connections for pogo pins. Depending on what is connected to the
pogo pins, the allowable connections are grouped as follows:
Connections to the Main Circuit of the Analog
Module

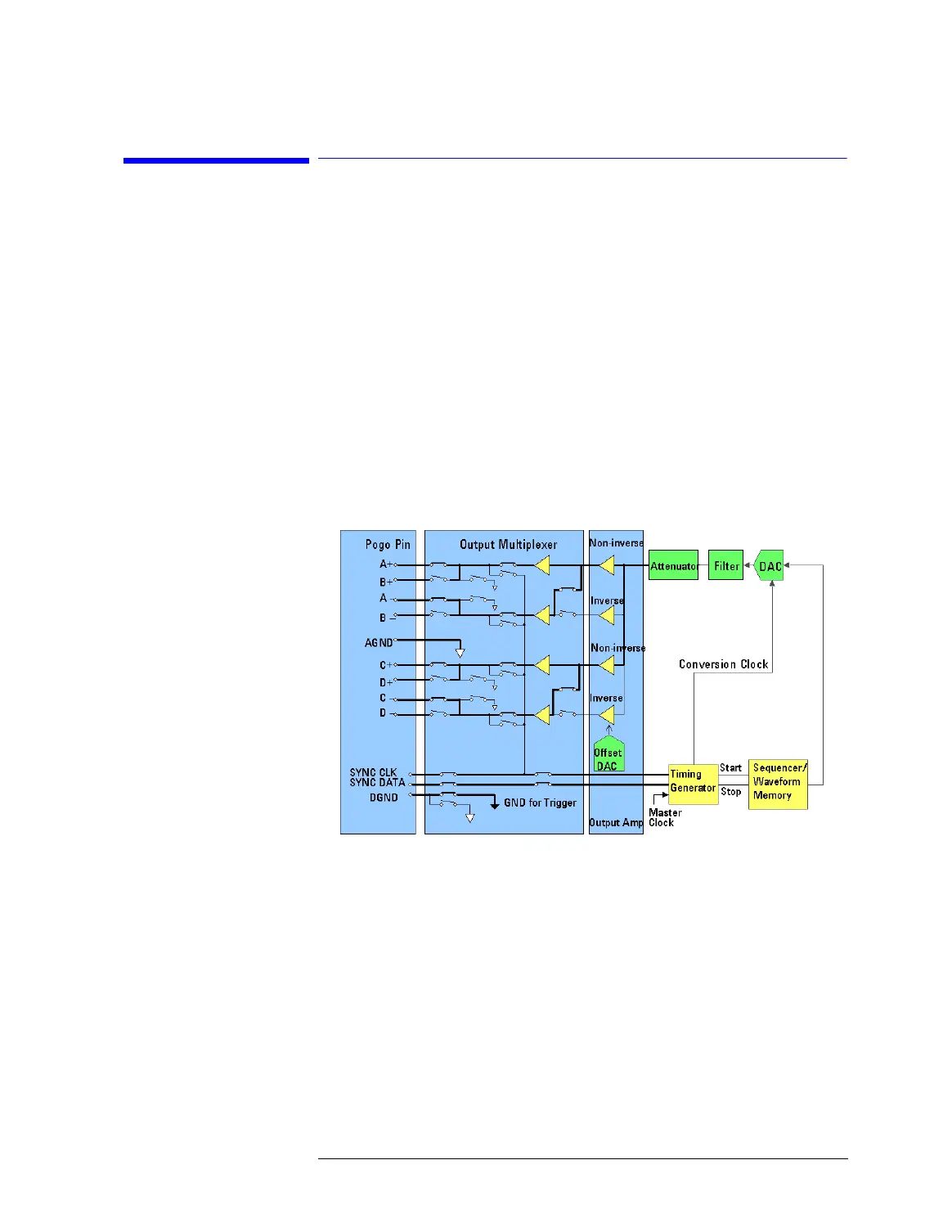

Output Routes (for AWGs only)
This connection type is used to source an analog waveform.
Output Routes (Single-Ended in WGA/WGB/WGD)
