Lesson 1 – The Training ADC

299

1-2 Test Setup Overview for ADC Tests

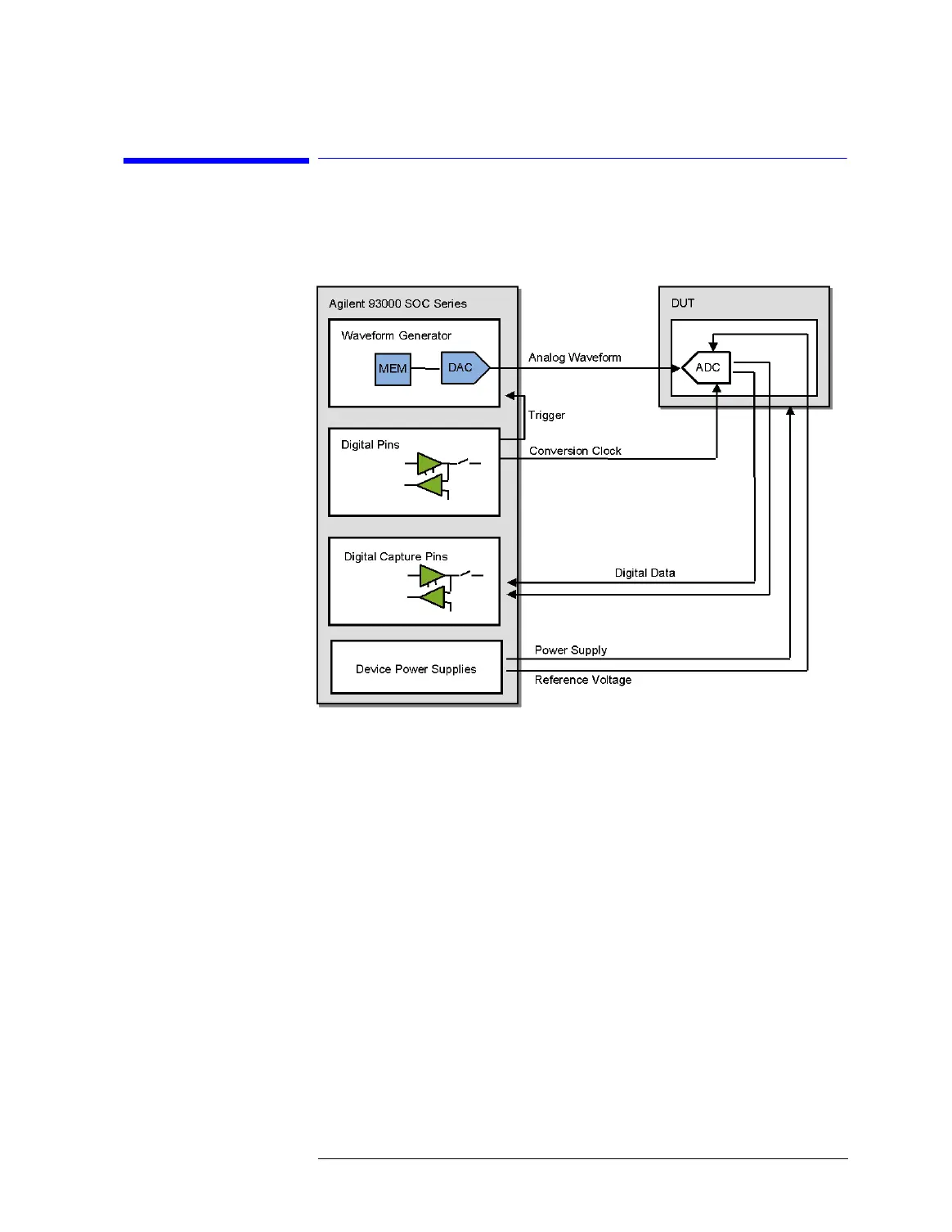

ADC tests are generally set up as shown below:

Setup for Testing an ADC

The ADC is stimulated by an arbitrary waveform generator. The

digital analog response is captured by the digital pins.

The generator needs a trigger pulse to start generating the analog

signal, and the DUT needs a conversion clock signal.

Besides the power supply for the device, the test system must

provide the reference voltage for the ADC.
