Lesson 1 – The Training ADC

300

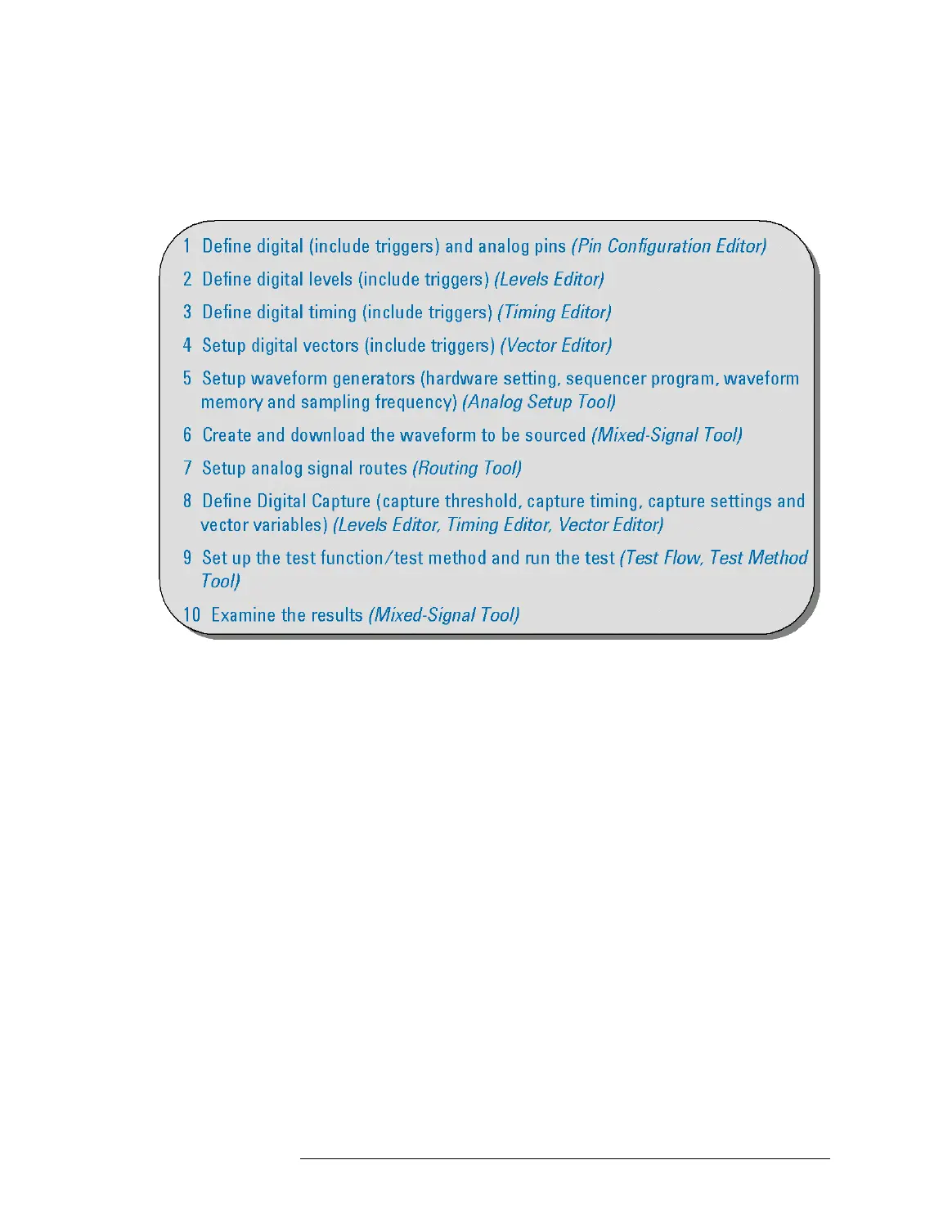

ADC Test Setup Procedure

In this training, steps 5 to 10 will be explained in detail. The other

steps are performed with the standard setup tools, as taught in

the Agilent 93000 SOC Series User Training, Part 1 and Part 2.

These steps will only described shortly, and carried out by you in

the lab exercises.
