Lesson 2 – Setting Up the Waveform Generator

320

2-3 Signal Routing

You need to specify a routing set for the ADC test with the Routing

Setup Tool.

The usage of the tool was described in “Defining the Signal

Routing” on page 209.

The following figure shows the routing command you need to

define to connect the WGA to the output pin ADC_WGA that is

connected to the analog input pin of the ADC.

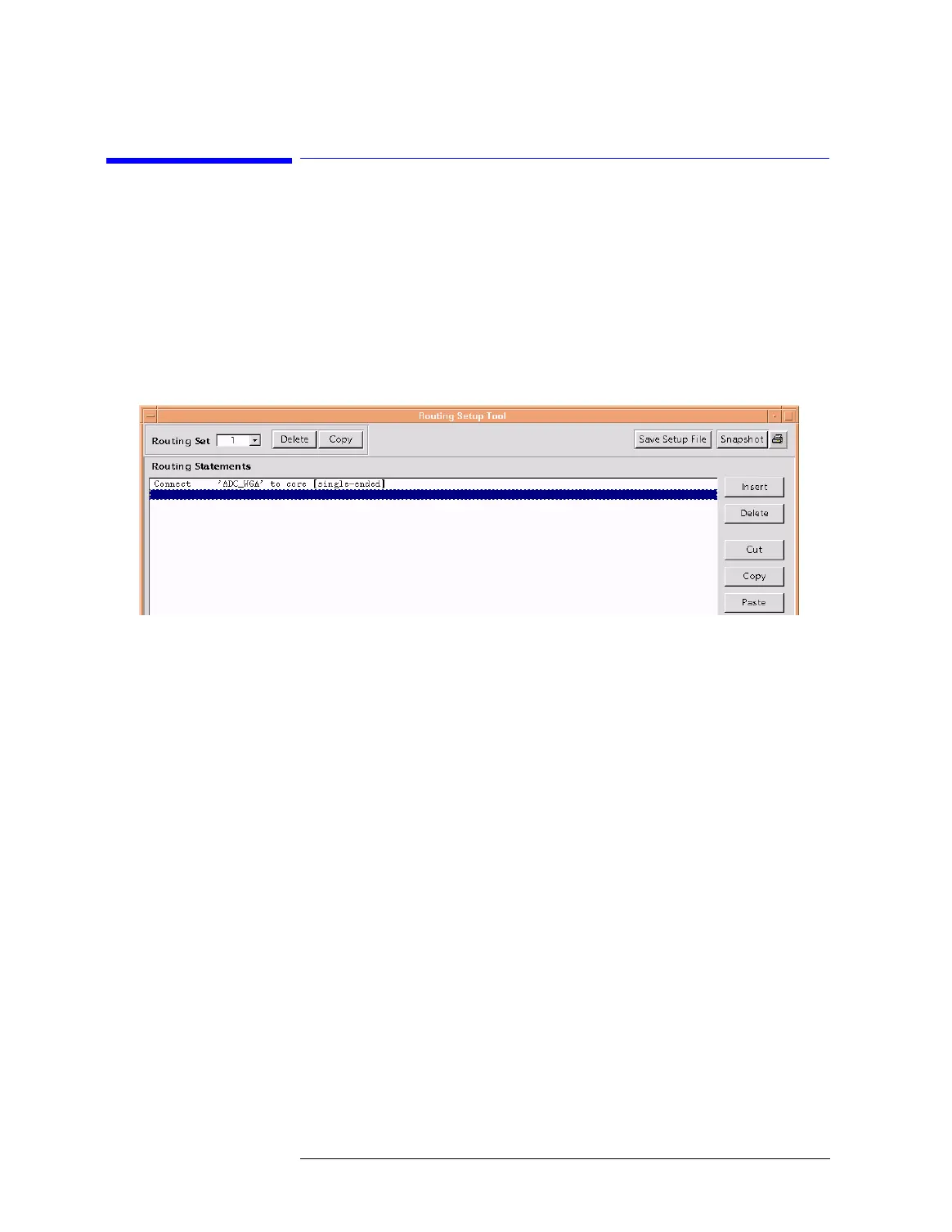

Routing Set for ADC Test
