Agilent Technologies 93000 SOC Series User Manual

Lesson 4 – Executing the ADC Linearity Test
347
4-2 ADC Linearity Test Parameters
In the Test Control window you enter the parameters for the
execution of the ADC Linearity testfunction.

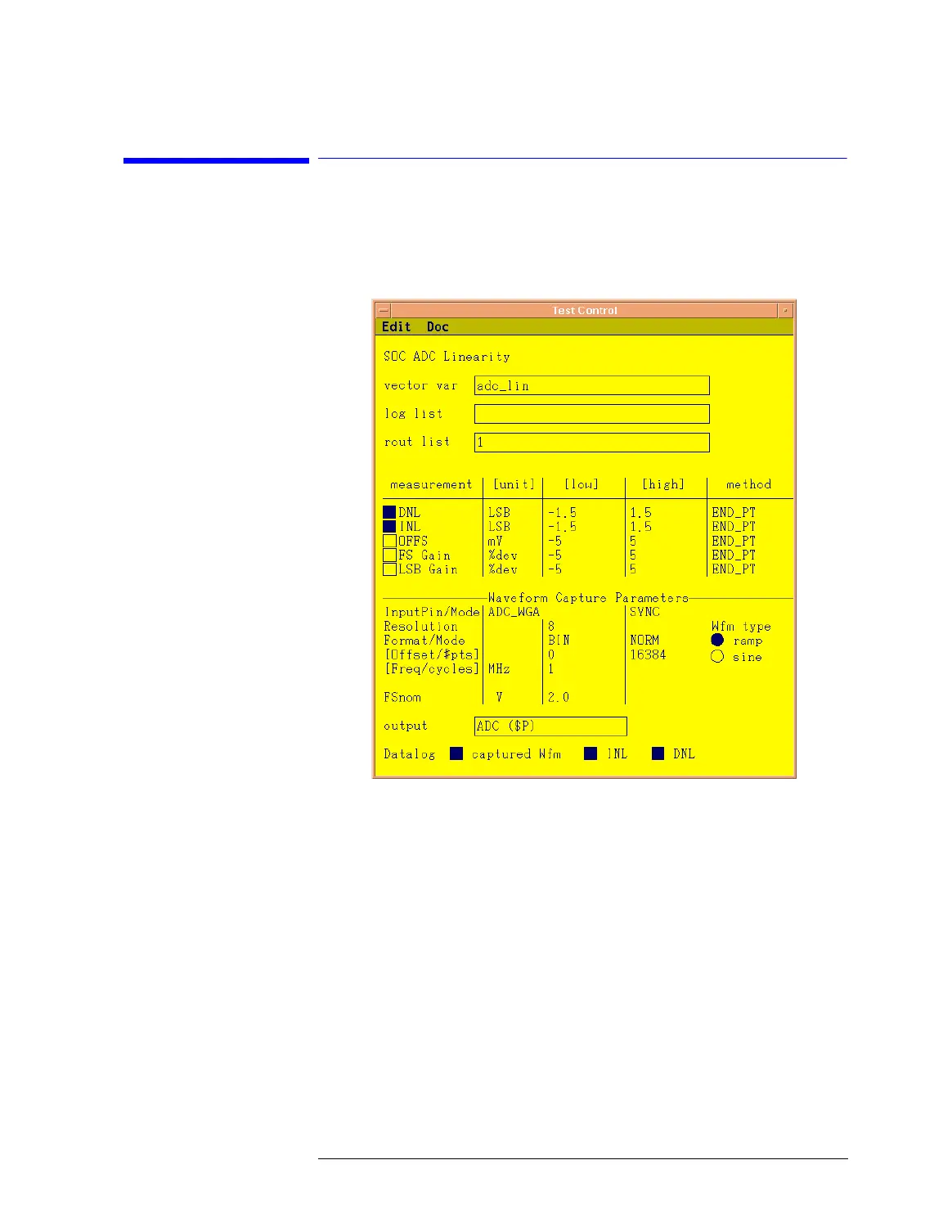

SOC ADC Linearity Test Control Window
•
VEC LIST: The vector variable to be used to retrieve the captured
ADC output data.
• LOG LIST: For future enhancement. Leave this field empty.
• ROUT LIST: The routing set to be used.
Measurements
In this section you activate the measurements/result calculations
to be performed, and enter the required parameters.
You can choose from the available units and enter the pass/fail
limits.
The M
ETHOD column allows you to select the desired calculation
method for the DeviceLSB. The calculation methods are equivalent
