Lesson 4 – Executing the ADC Linearity Test

346

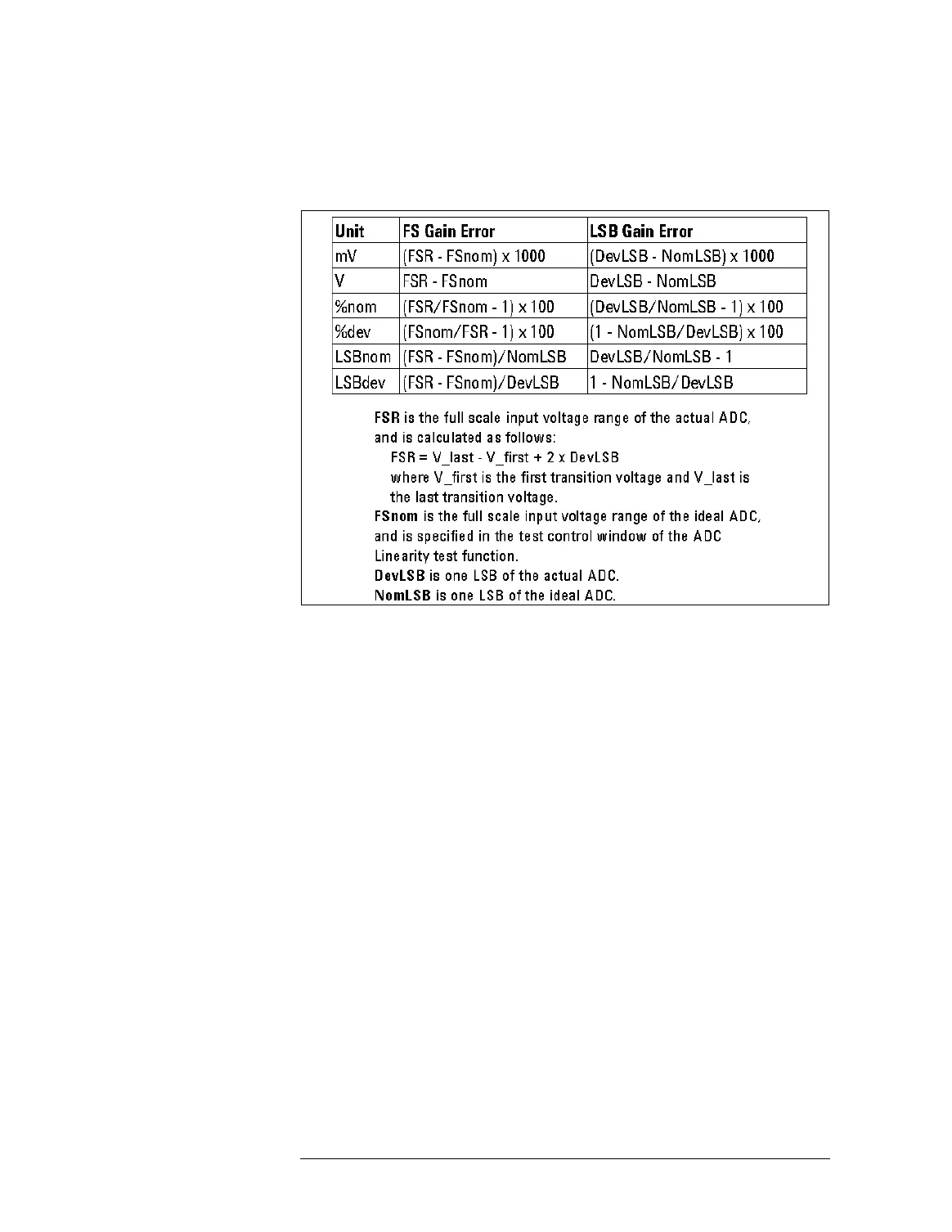

To calculate FS gain error and LSB gain error, the following

formulas are used:

Calculation of ADC Gain Error

Default Chapter3
