Agilent Technologies 93000 SOC Series User Manual

Lesson 2 – Waveform Digitizer Setup with the Analog Setup Tool
181
2-4 Setting Up the Analog Hardware

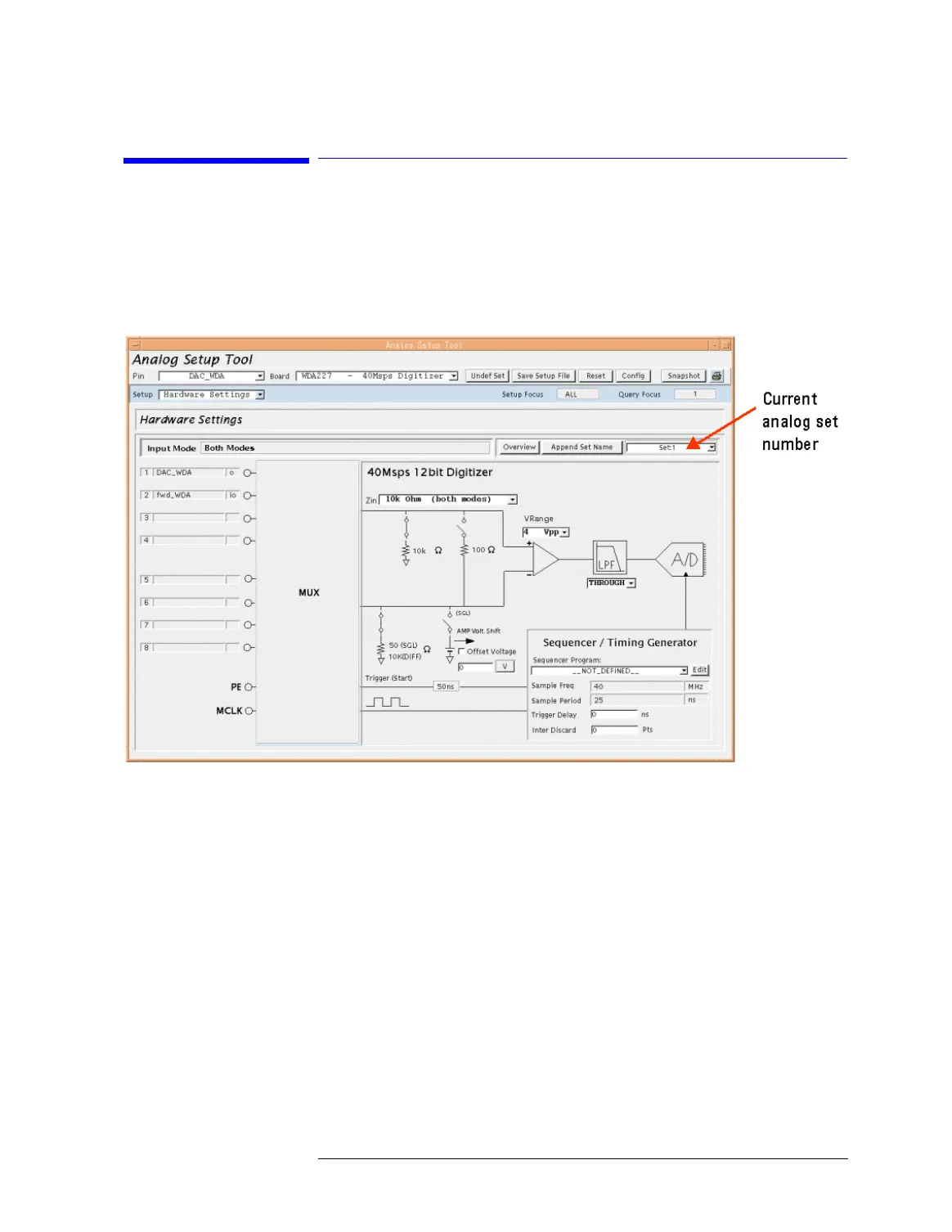

On the Hardware Settings page, the Analog Setup Tool shows for a
waveform digitizer the defined analog pin connections at the left-
hand side and a block diagram of the chosen core at the right-
hand side.
Hardware Setup
NOTE
Before making any changes, you should check which set is currently
selected, as the display only shows the settings of this set and all your
subsequent changes will be stored in this set.
How to Choose the Set
To choose a different set:
1 Open the ANALOG SET NUMBER pull-down menu.
2 Choose a number from the list.
To obtain a summary of the defined sets and their hardware
settings:
1 Click the OVERVIEW button.
