Lesson 5 – Executing the ADC Distortion Test
357
5-2 ADC Distortion Test Parameters
In the Test Control window you enter the parameters for the
execution of the ADC Distortion testfunction.

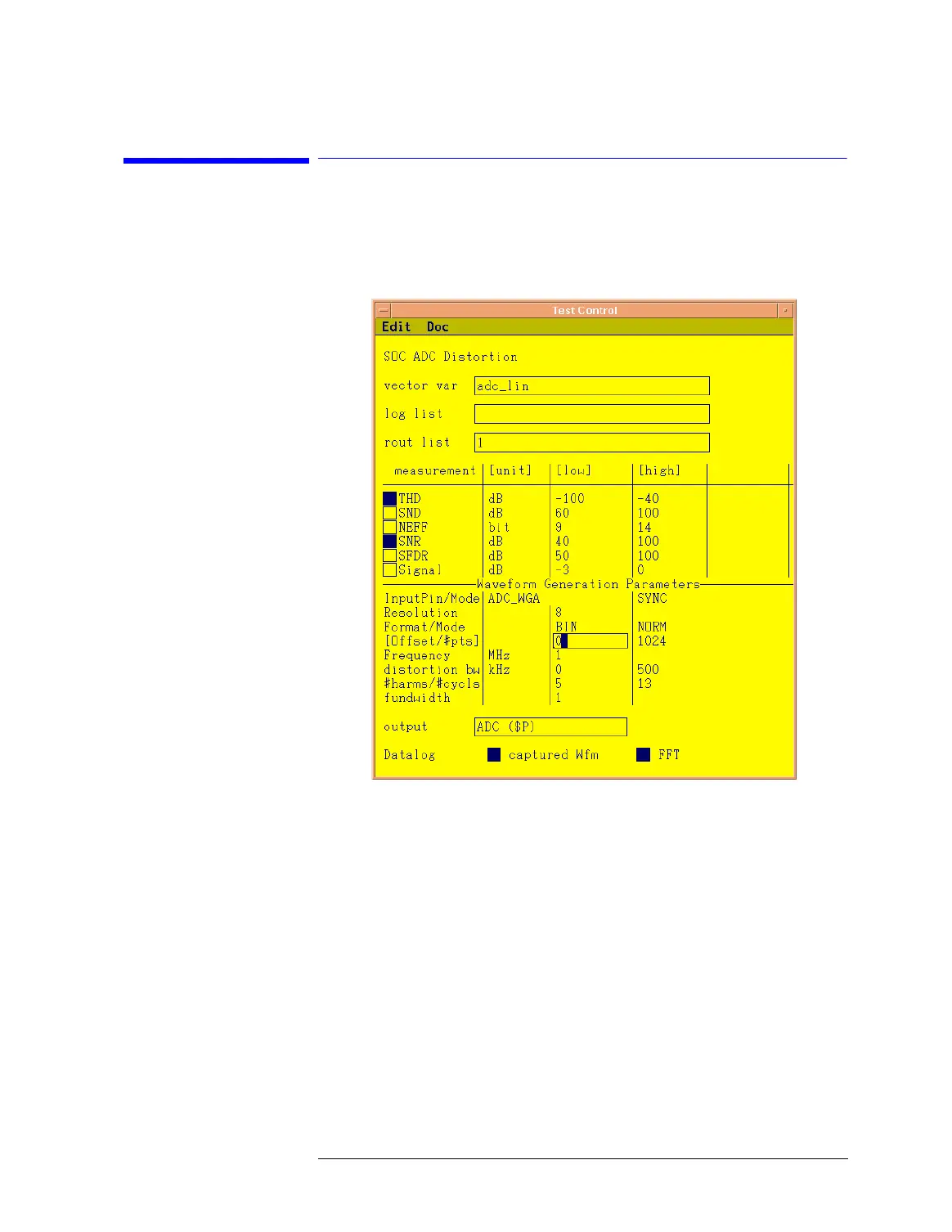

SOC ADC Distortion Test Control Window
VEC LIST, LOG LIST, and ROUT LIST are entered as for the ADC
linearity test.
Measurements
In this section you activate the measurements/result calculations
to be performed, and enter the required parameters.
You can choose from the available units and enter the pass/fail
limits.
Waveform Generation Parameters
• INPUTPIN: Type in the pin name for the waveform generator. This
pin sources the test waveform to the DUT.
